På vänster baksida fungerar inte (Kanal 1), skapar ett väldigt lågt ljud jämfört med den högra sidan (Kanal 2) som fungerar som den ska. Sladd medföljer

Gear4music's 1 års garanti för begagnade produkter gäller ej.

Observera att produkten inte är tillgänglig för avhämtning från Gear4musics Showroom utan kommer att skickas som hemleverans. Produkten kommer skickas till adressen hänvisad i köparens kontoprofil.

Produktinformationen kan innehålla tillbehör eller programvara som inte ingår i Tradera varan.

Det som syns på annonsens bilder är det som medföljer.

Observera att produkten inte är tillgänglig för avhämtning från Gear4musics Showroom utan kommer att skickas som hemleverans.

Följande är den ursprungliga produktbeskrivningen, ENDAST FÖR REFERENS.

Full Description

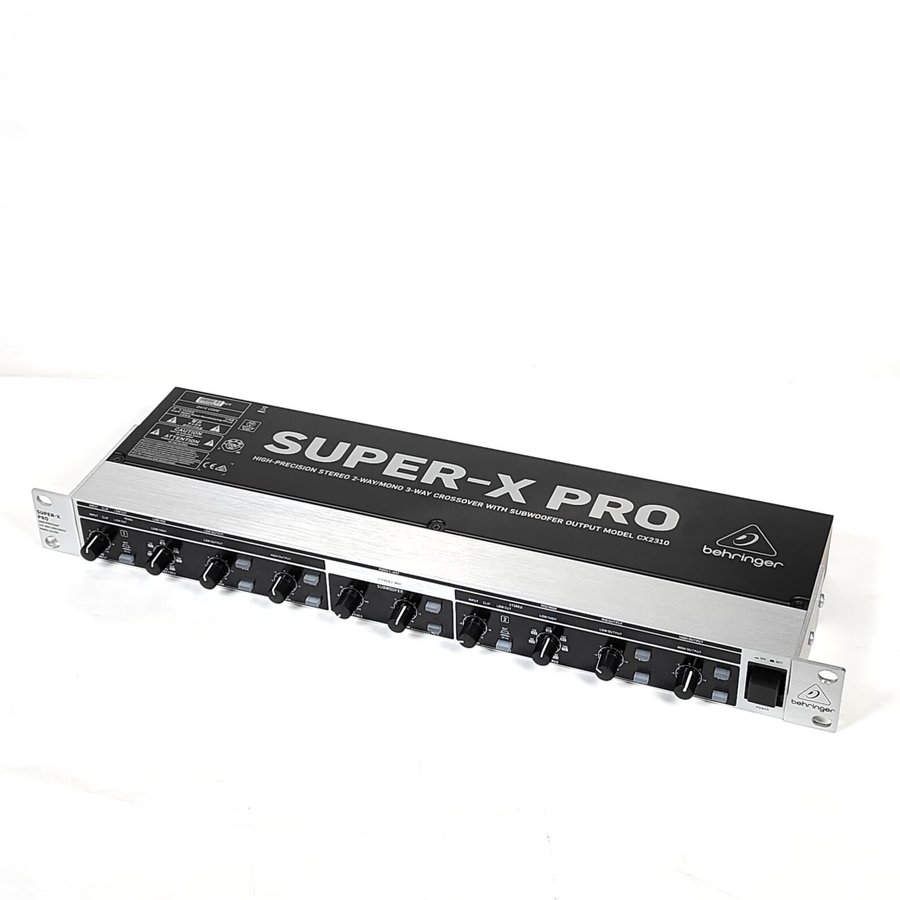

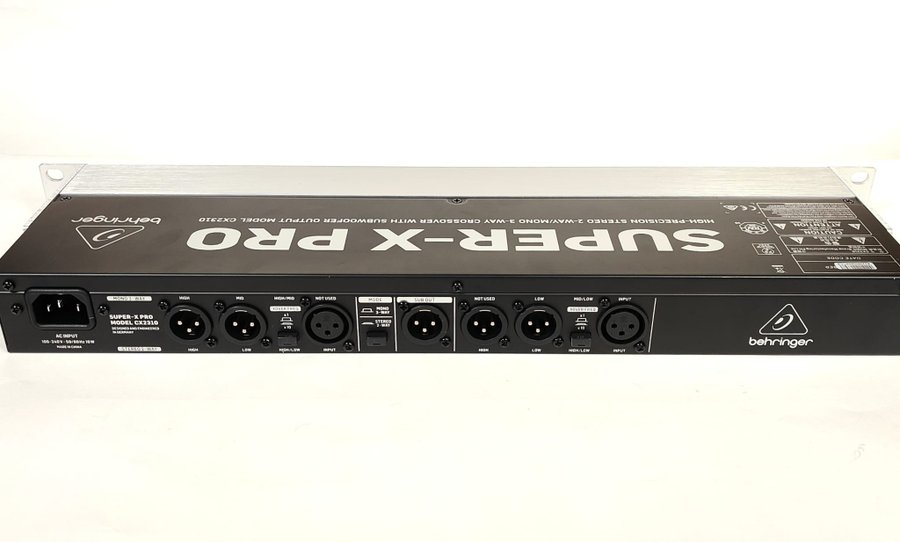

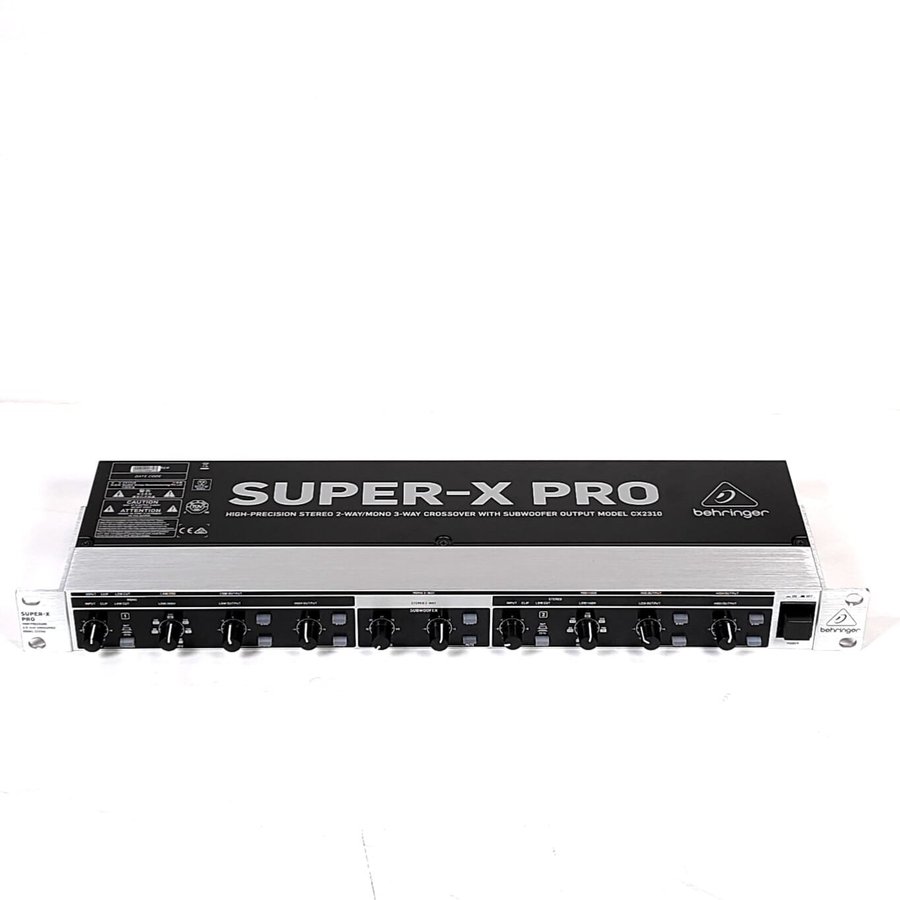

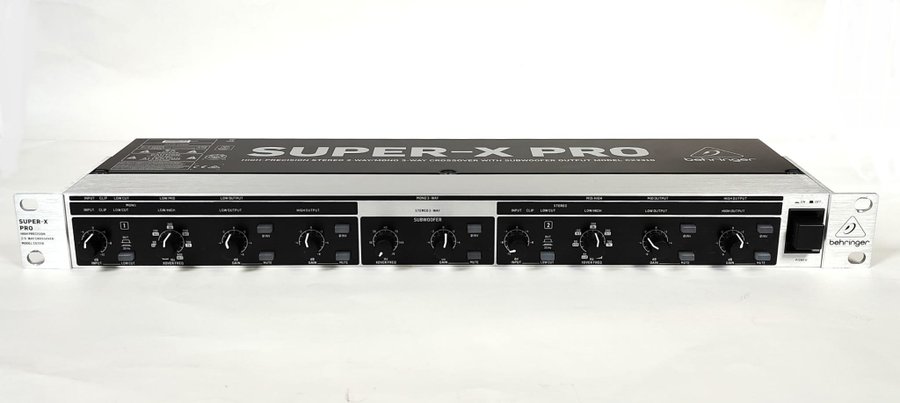

Unparalleled sonic performance

Crossovers are an essential element for any multi-way PA system. Most transducers simply can't reproduce the entire audio spectrum on their own. That's were the CX2310 V2 comes in...

Enabling you to properly and precisely tune your sound system, you can achieve unbelievable power, balance, and efficiency. Splitting the frequency spectrum across multiple transducers lets you hear each frequency band exactly the way it was intended. Tight bass content with incredible impact, mids that ooze rich harmonics, and crisp, articulate highs - the CX2310 V2 lets you effortlessly take advantage of astounding audio quality.

Features

Manage your frequencies with this professional stereo 2-way/mono 3-way crossoverFull control of your inputs from Linkwitz-Riley filters with 24dB/octave slopesIndependent frequency control with additional subwoofer outputCompletely flat summed amplitude response with zero phase differenceIndividual output gain controls for all frequency bandsQuick and easy band adjustment via output mute switchesInstant phase correction from phase-reverse switchesKeeps your low-frequency drivers safe with a switchable 25Hz HPF on each inputPristine signal integrity from servo-balanced and gold-plated XLR connectorsUltra-high precision potentiometers offer the ultimate in accurate controlWork safely on dark stages thanks to illuminated switchesLow power consumption and noise free audio thanks to an internal switch mode power supply

Specifications

Input Type: XLR, electronically servo-balanced, HF-filtered
Input Impedance:
Balanced: 52k Ohms
Unbalanced: 26k Ohms

Maximum Input Level: +22dBu, balanced or unbalanced
Input CMRR: Typically >60dB at 1kHz
Output Type: XLR, electronically servo-balanced, HF-filtered

Output Impedance:
Maximum Output Level: +21dBu, balanced or unbalanced
Bandwidth: 20Hz to 20kHz, +0/-5dB
Frequency Response: 10Hz to 60kHz, +0/-3dB
Signal to Noise: Ref: +4dBu, 20Hz to 20kHz, unweighted

Low Output:
Stereo Mode: >97dB
Mono Mode: >97dB

Mid Output:
Stereo Mode: N/A
Mono Mode: >98dB

High Output:
Stereo Mode: >95dB
Mono Mode: >94dB

Subwoofer Output:
Stereo Mode: >97dB
Mono Mode: >97dB

Interchannel Crosstalk:

High to Low:
High to Mid:
Mid to Low:

Filter Type: Linkwitz-Riley, 24dB/Octave, state-variable
Mono Mode X-Over Frequencies:
Low/High:
x1: 44Hz to 930Hz
x10: 440Hz to 9.3kHz
Low/Mid:
x1: 44Hz to 930Hz
x10: 440Hz to 9.3kHz

Mid/High:
x1: 44Hz to 930Hz
x10: 440Hz to 9.3kHz

Stereo Mode X-Over Frequencies:
Low/High:
x1: 44Hz to 930Hz
x10: 440Hz to 9.3kHz
Subwoofer X-Over Frequencies: 10Hz to 215Hz (-3dB)
Low-Cut Filter Frequency: 25Hz (-3dB) 12dB/Octave
Power Supply: 100-240V (50/60Hz) switch-mode auto-ranging
Power Consumption: 10W
Mains Connection: Standard IEC connector
Dimensions: (H x W x D) 44mm x 483mm x 147mm / 1.7'' x 19'' x 5.8''
Weight: 1.6kg / 3.5lbs

Se till att du läser artikelbeskrivningen fullständigt eftersom den säljs i befintligt skick.


14 dagars ångerrätt.
Du har 14 dagars ångerfrist från dagen efter att varan mottagits.
Fraktkostnad för returnering av varan betalas av dig som köpare.
