Behringer WING COMPACT Digital Mixer - DEFEKT

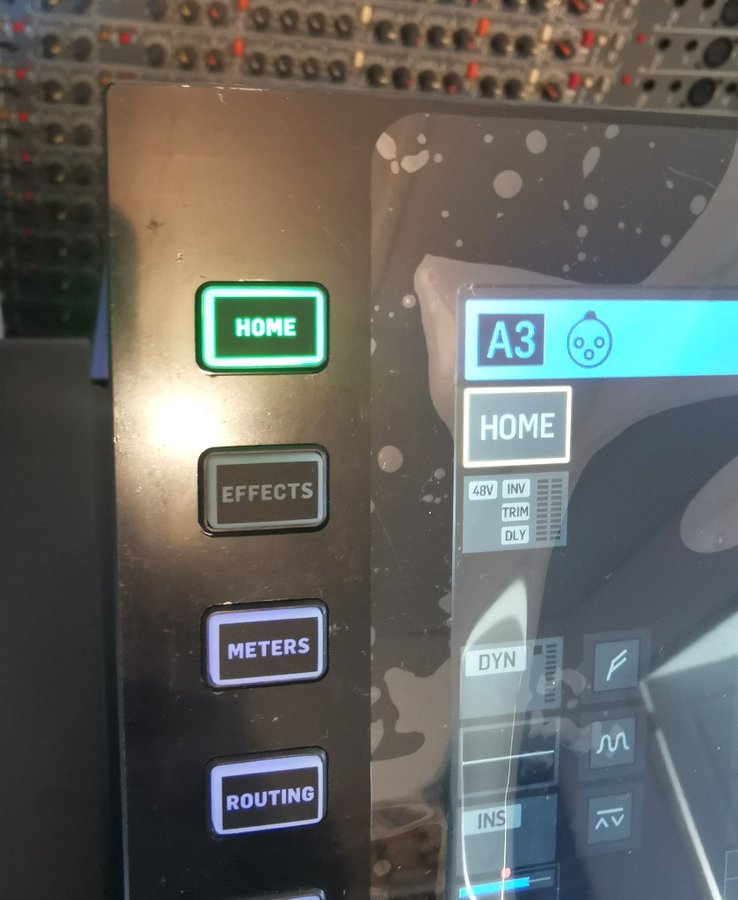

Trasig lampa bakom effect" knappen. Lyser inte i standbyläge (vitt), när man trycker på den och den blir aktiv" fungerar lampan (grön).

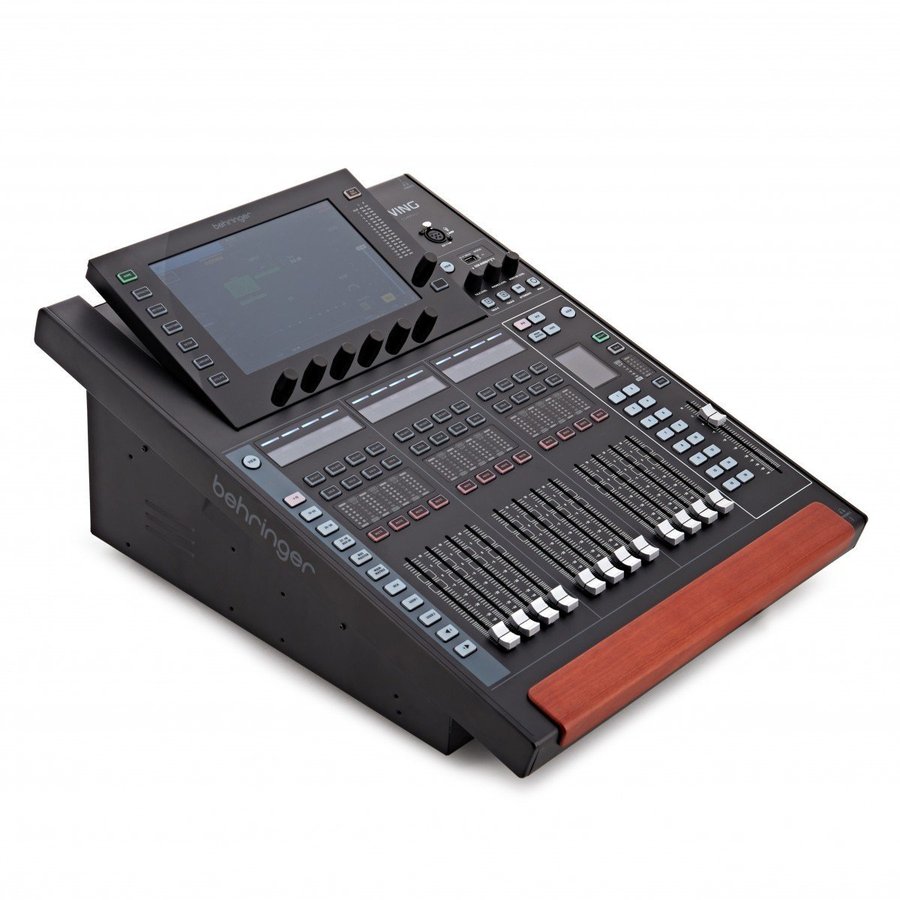

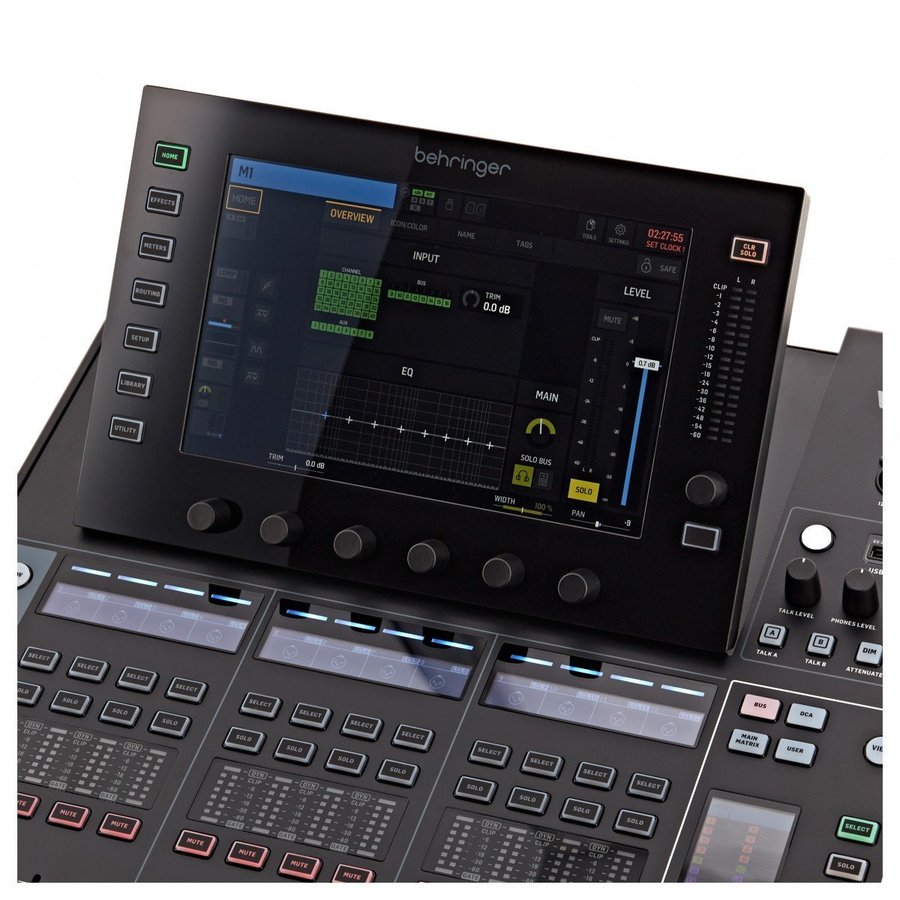

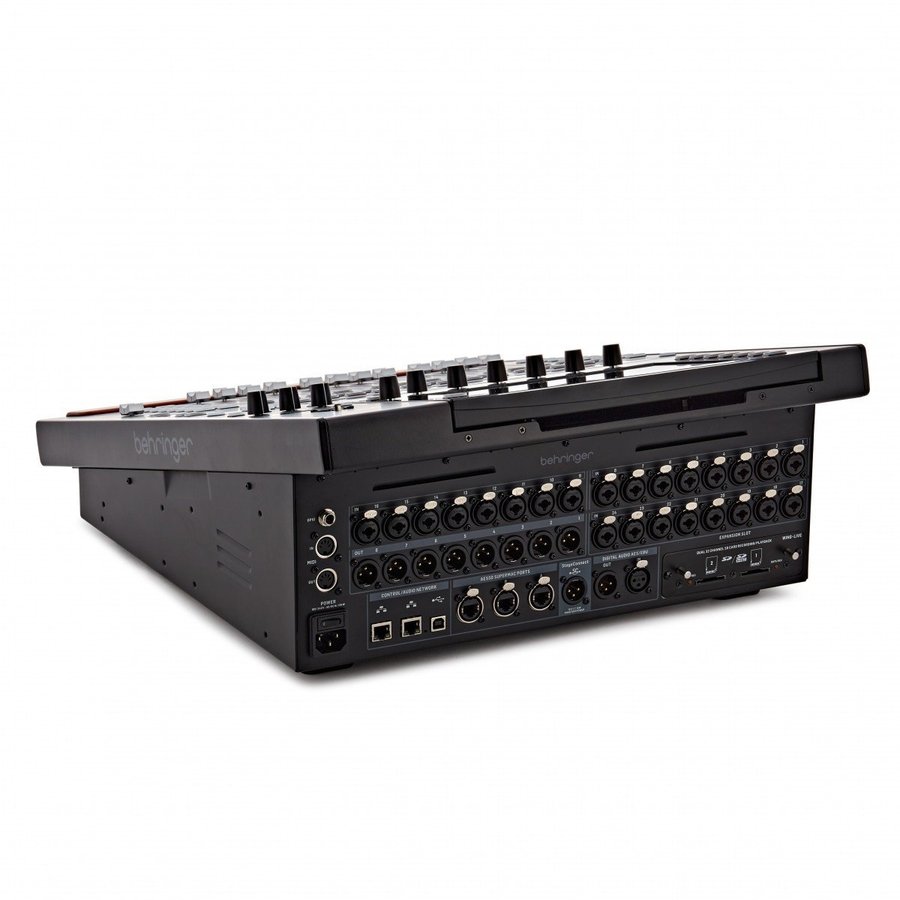

(Observera att första 3 bilderna är tagna från våran hemsida, endast för referens)

Gear4music's 1 års garanti för begagnade produkter gäller ej.

Observera att produkten inte är tillgänglig för avhämtning från Gear4musics Showroom utan kommer att skickas som hemleverans. Produkten kommer skickas till adressen hänvisad i köparens kontoprofil.

Produktinformationen kan innehålla tillbehör eller programvara som inte ingår i Tradera varan.

Det som syns på annonsens bilder är det som medföljer.

Observera att produkten inte är tillgänglig för avhämtning från Gear4musics Showroom utan kommer att skickas som hemleverans.

Följande är den ursprungliga produktbeskrivningen, ENDAST FÖR REFERENS.

Full Description

User-friendly touch screen

The WING COMPACT’s 10" touch screen with the WING user interface streamlines your workflow. Effortlessly navigate and adjust your mix with a touch, making it ideal for both studio sessions and live performances.

Configurable motorized faders

Featuring 13 motorized 100 mm faders, the WING COMPACT offers customizable control. These faders are divided into three sections, allowing you to tailor your setup for precise mixing, providing a flexible solution for various audio environments.

Comprehensive connectivity

With three AES50 ports and Klark Teknik’s SuperMAC technology, the WING COMPACT supports up to 144 input and output signals with ultra-low jitter and latency. This “plug and play” connectivity is perfect for extensive production setups.

High-quality FX options

The WING COMPACT includes premium and standard FX racks with 8 true-stereo processors each. From world-class reverb algorithms to classic vintage emulations, these effects enhance your mix, integrating seamlessly with your sound for professional-grade results.

Features

• 24 award-winning Midas PRO mic preamps and 8 Midas PRO outputs onboard
• 13 motorized 100 mm faders in 3 separate, fully configurable sections
• Plug and play remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik’s SuperMAC technology for ultra-low jitter and latency
• Large main display on an adjustable swivel featuring the innovative touch optimized WING user interface
• 48 x 48 channel USB 2.0 audio interface onboard with DAW remote control emulating HUI and Mackie Control
• Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
• Premium FX rack with 8 true-stereo processors and world-class TC M3000 algorithms, as well as Lexicon, Quantec, and EMT emulations
• Standard FX rack with 8 true-stereo processors for a wide array of modulation EQ dynamics etc. also allows blending outboard effects to the mix
• 5 variable plug-in processing slots for all 40 stereo input channels featuring the most iconic vintage analog equalizers and compressors plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels
• 4 main 8 matrix and 16 aux stereo buses featuring dual inserts 8-band parametric EQ's stereo imager and full dynamics processing
• 2 Ethernet ports with integrated switch for networked remote control and optional AoIP
• Built-in expansion port for optional audio interface cards or digital networking bridges MADI and ADAT/WC
• StageCONNECT 32-channel low-latency interface for personal monitoring or analog I/O boxes
• AES/EBU stereo digital inputs and outputs on balanced XLR
• TRS headphones connectors for headphone-based monitoring
• MIDI I/O and 2 GPIO ports for broader hardware connectivity
• Comes with a pair of 19-inch rack brackets that can be assembled in 3 positions

Specifications

• Product Code: WING COMPACT

Input/Output Characteristics:

• Frequency Response @ 48 kHz Sample Rate, 0 To -1 dB (Any Gain Setting): 10 Hz - 20 kHz
• Dynamic Range, Analog In To Analog Out (Typical), XLR / Aux: 111 dB / 108 dB
• A/D Dynamic Range, Preamplifier And Converter (Typical), XLR / Aux: 112 dB / 110 dB
• D/A Dynamic Range, Converter And Output (Typical), XLR / Aux: 118 dB / 112 dB
• Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
• Output Level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
• Output Impedance, XLR Connectors (Unbalanced / Balanced): 75 O / 75 O
• Input Impedance , TRS Connectors (Unbalanced / Balanced): 20 kO / 40 kO
• Non-Clip Maximum Input Level, TRS Connectors: +16 dBu
• Aux Output Level, TRS (Nominal / Maximum): +4 dBu / +16 dBu
• Aux Output Impedance, TRS (Unbalanced / Balanced): 150 O / 300 O
• Phones Output Impedance / Maximum Output Level: 500 mW @ 75 O / +18 dBu
• Residual Noise Level, XLR Out 1-16 Connectors, Unity Gain: -97 dBu
• Residual Noise Level, Aux And Monitor TRS Out Connectors: -95 dBu

Displays:

• Main Screen: 10.1" TFT LCD, 1280 x 800 px, Capacitive Touch
• Main Screen Swivel, Continuous Adjustment: 15°- 60°
• 4-Channel Group LCD Screen With RGB Colour Strip Per Channel: 320 x 48 Monochrome
• Channel Editing Screen: 2.4" TFT LCD, 320 x 240 px
• Main Stereo Meter: 18 Segment (-60 dB To Clip)

Controls:

• 100 mm Motor Faders: 13

Power:

• Switch-Mode Power Supply: Auto-Ranging 100-240 Vac (50/60 Hz)
• Power Consumption: 130 W

Physical:

• Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
• Dimensions (H x W x D): 315 x 662 x 560 mm (12.4 x 26.1 x 22")
• Weight: 22.56 kg (49.63 lbs)
  Se till att du läser artikelbeskrivningen fullständigt eftersom den säljs i befintligt skick.

  14 dagars ångerrätt.
  Du har 14 dagars ångerrätt från dagen efter att varan mottagits.
  Fraktkostnad för returnering av varan betalas av dig som köpare.
