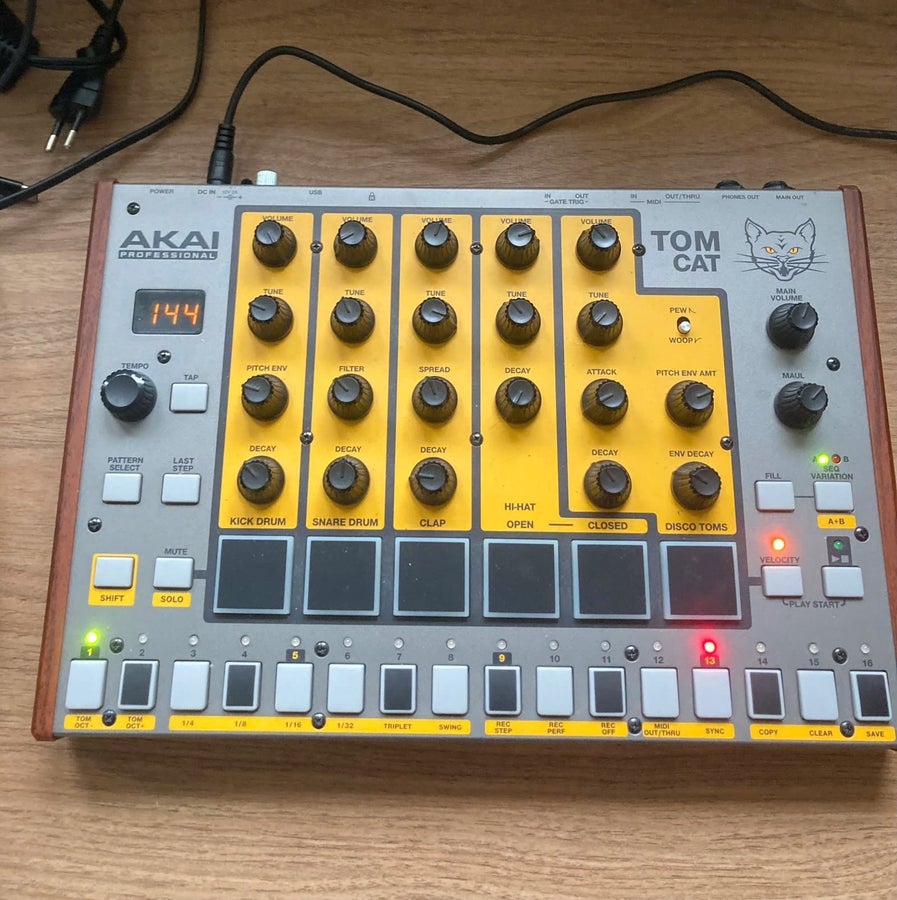

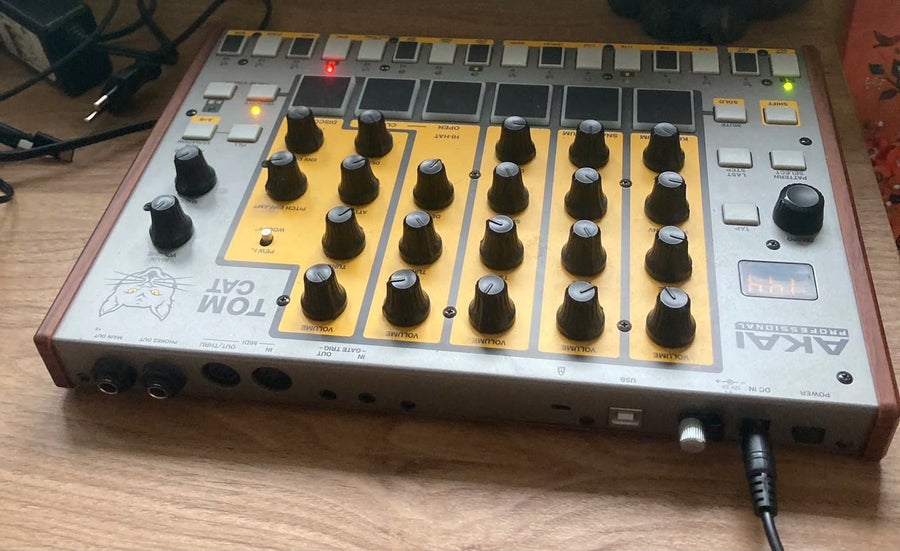

AKAI Tom Cat - Analog Drum Machine

Överfet med disco toms och en klar förbättring jämfört med Rhythm Wolf! ;)

The Akai Tom Cat Analog Drum Machine is a 5-voice, true analog drum computer released in 2015.

Polyphony / Multitimbral: 5 voices / 5 parts (Kick, Snare, Clap, Hi-Hat open/closed, and chromatic Disco Toms)

Sound Generation: Discrete analog circuits with 1 VCO per voice (Waveforms: Saw Down, Saw Up, Square)

Filter (VCF): 12dB slope (2-pole) low-pass filter with resonance

VCA / Envelopes: 1 VCA with adjustable decay envelope per voiceSpecial Controls: "Maul" control (an analog distortion/waveshaper circuit to pump up the sound)

Sequencer: 32-step sequencer

Patterns: 16 patterns (each with 2 sequences and 2 fills/sequences)

Time Divisions: 1/4, 1/4 triplet, 1/8, 1/8 triplet, 1/16, 1/16 triplet, and 1/32

Memory: 16 user RAM patches and 16 ROM patches

Connections
Audio Outputs: Stereo main output (1/4" master out) and headphone output

MIDI: MIDI In, MIDI Out/Thru

USB: USB MIDI port for computer connectivity

CV/Gate: Gate Trigger In/Out (3.5mm) for syncing with modular or vintage gear
