Beskrivning

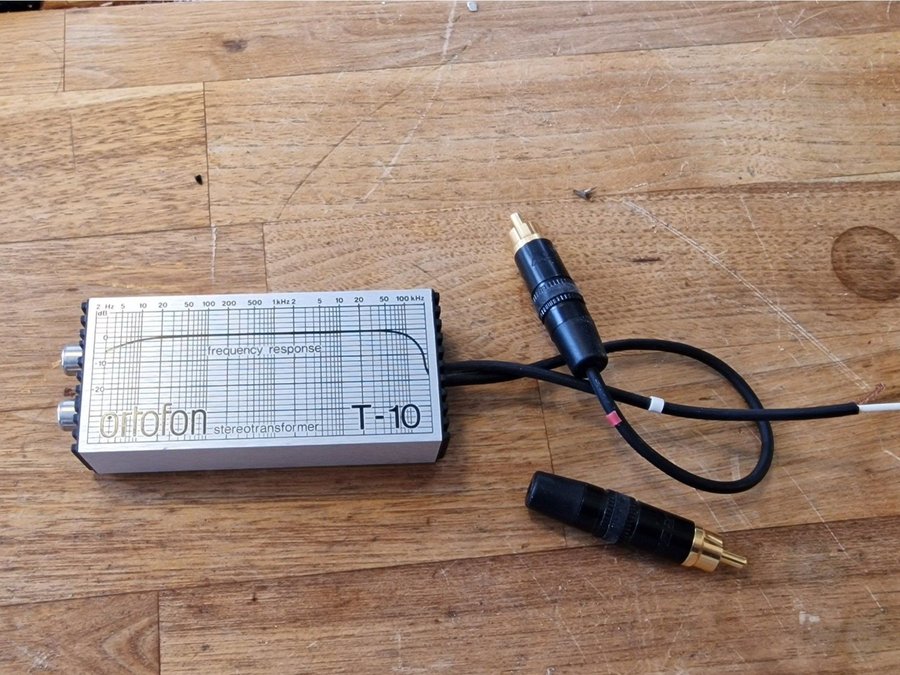

Ortofon T-10 Moving Coil transformator.
Defekt! låter bara på en kanal

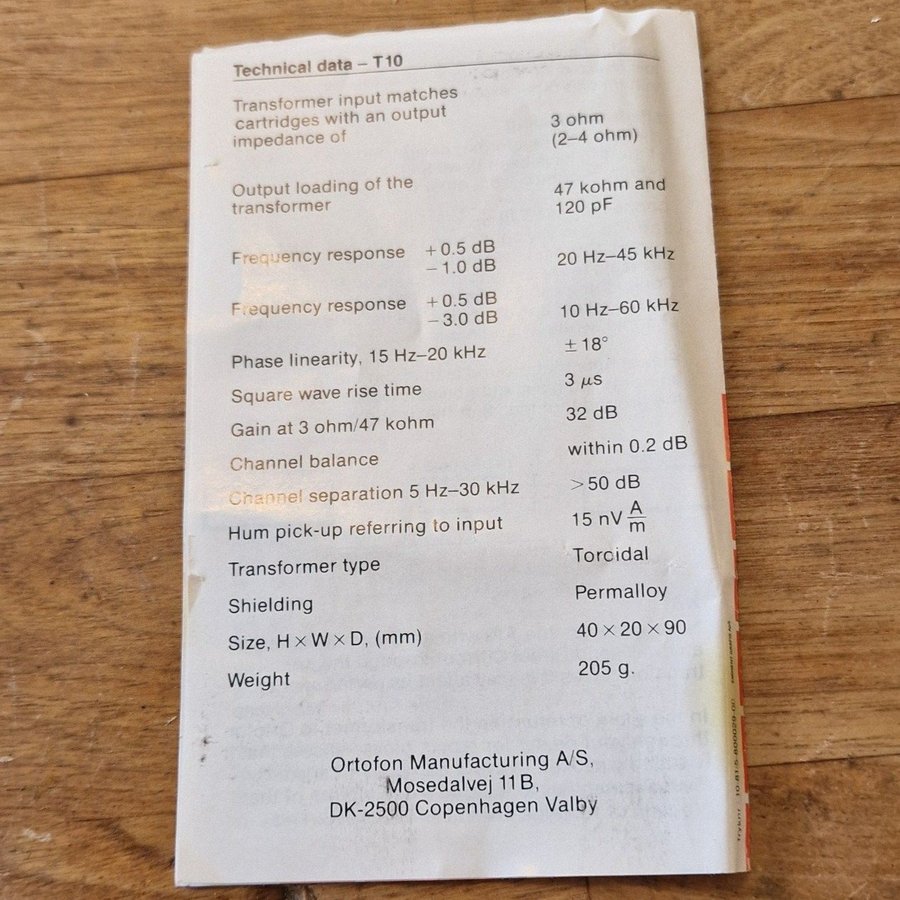

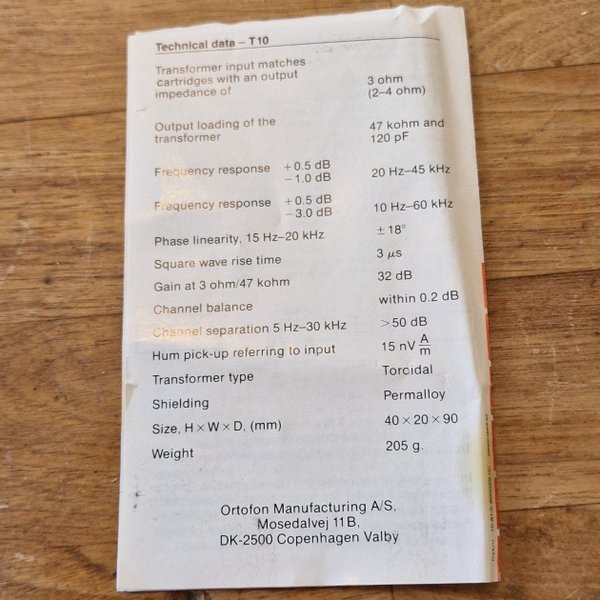

Specifikationer:
* Transformer input matches cartridges with an output impedance of 3 ohm (2-4 ohm)
* Output loading of the transformer 47 kohm and 120 pF
* Frequency response + 0.5 dB - 1.0 dB 20 Hz-45 kHz
* Frequency response + 0.5 dB - 3.0 dB 10 Hz-60 kHz
* Phase linearity, 15 Hz-20 kHz ± 18°
* Square wave rise time 3 µs
* Gain at 3 ohm/47 kohm 32 dB
* Channel balance within 0.2 dB
* Channel separation 5 Hz-30 kHz >50 dB
* Hum pick-up referring to input 15 nV/m
* Transformer type Toroidal
* Shielding Permalloy
* Size, H × W × D, (mm) 40 × 20 × 90
* Weight 205 g.
Defekt! låter bara på en kanal
Specifikationer:
* Transformer input matches cartridges with an output impedance of 3 ohm (2-4 ohm)
* Output loading of the transformer 47 kohm and 120 pF
* Frequency response + 0.5 dB - 1.0 dB 20 Hz-45 kHz
* Frequency response + 0.5 dB - 3.0 dB 10 Hz-60 kHz
* Phase linearity, 15 Hz-20 kHz ± 18°
* Square wave rise time 3 µs
* Gain at 3 ohm/47 kohm 32 dB
* Channel balance within 0.2 dB
* Channel separation 5 Hz-30 kHz >50 dB
* Hum pick-up referring to input 15 nV/m
* Transformer type Toroidal
* Shielding Permalloy
* Size, H × W × D, (mm) 40 × 20 × 90
* Weight 205 g.
Ortofon T-10 Moving Coil Transformator, defekt!
Avslutad 3 aug 18:32
Slutpris
∙
352 kr
372 kr med köparskydd.
tobben_b vann auktionen
