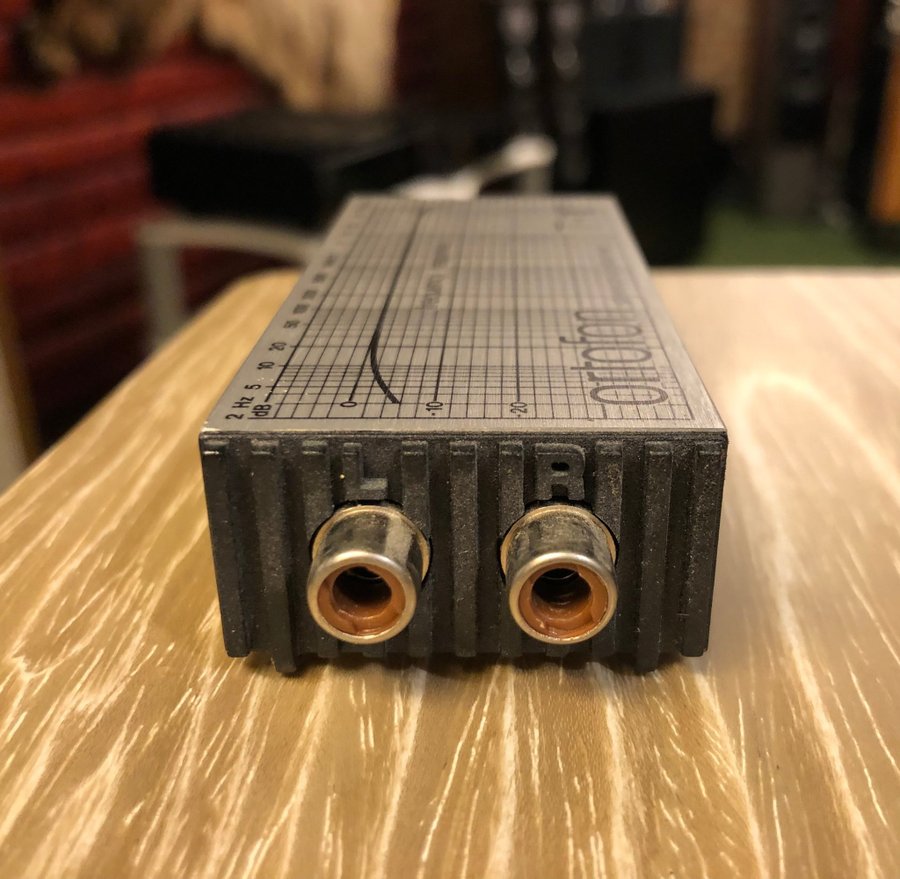

Ortofon T-10

MC-step-up transformator.
Fint begagnat skick.

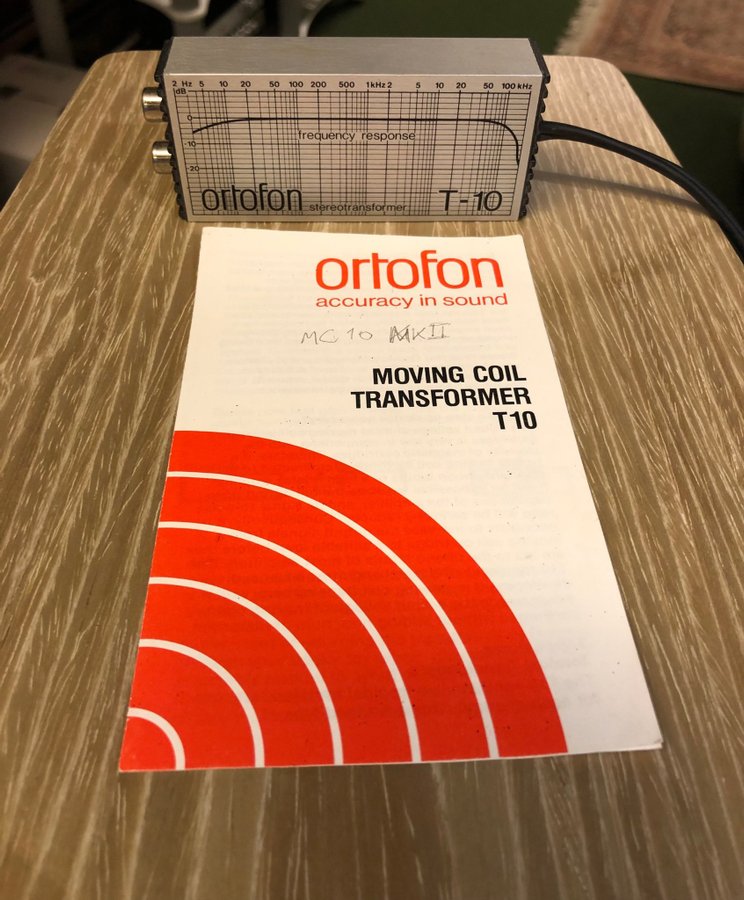

Kommer med bruksanvisning.

Specifikationer:

Designed to match cartridges with an internal impedance of 2 to 4 ohm per channel.

The unit has a wide, flat frequency response and low phase shift.

There is essentially no distortion in the audible range, and wide band characteristics permit a good transient performance.

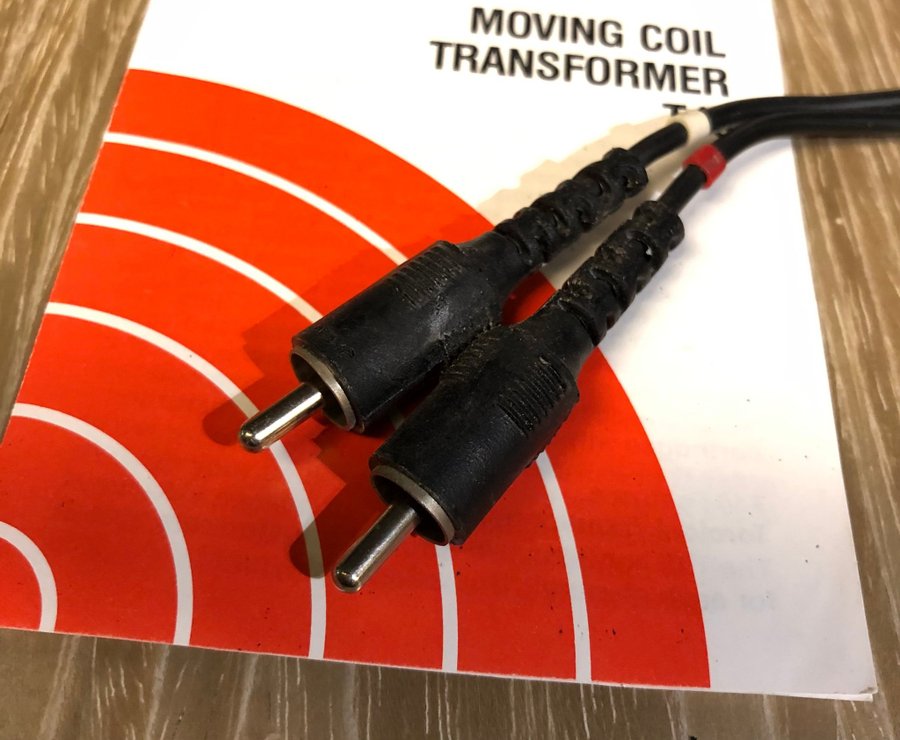

The T-10 output cables connect directly to the phono input sockets of the associated main amplifier.

Type of unit: transformer

Pick up impedance: 2 to 4 ohm

Output loading: 47k ohm / 120pf

Frequency response: 20Hz to 45kHz

Phase linearity: +-18 degrees

Gain: 32dB

Channel balance: 0.2dB

Channel separation: 50dB

Transformer type: toroidal

Shielding: permalloy

Dimensions: 40 x 20 x 90mm
