Kommer från ett Dödsbo.

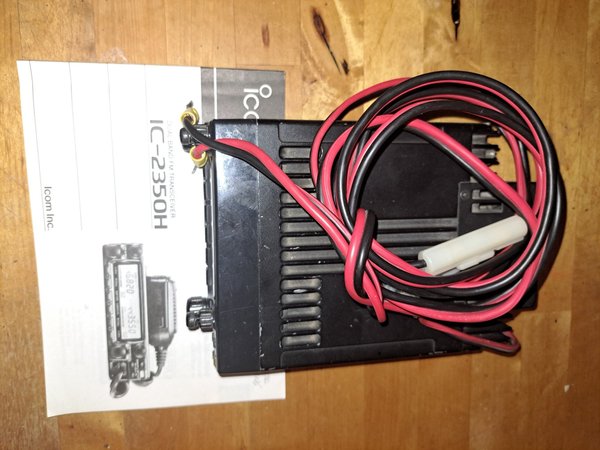

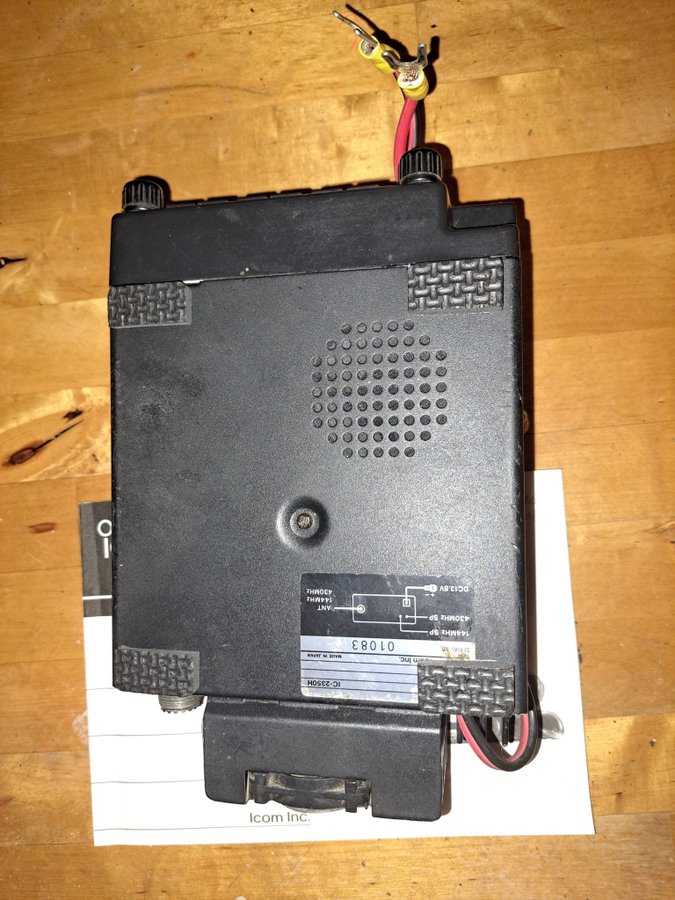

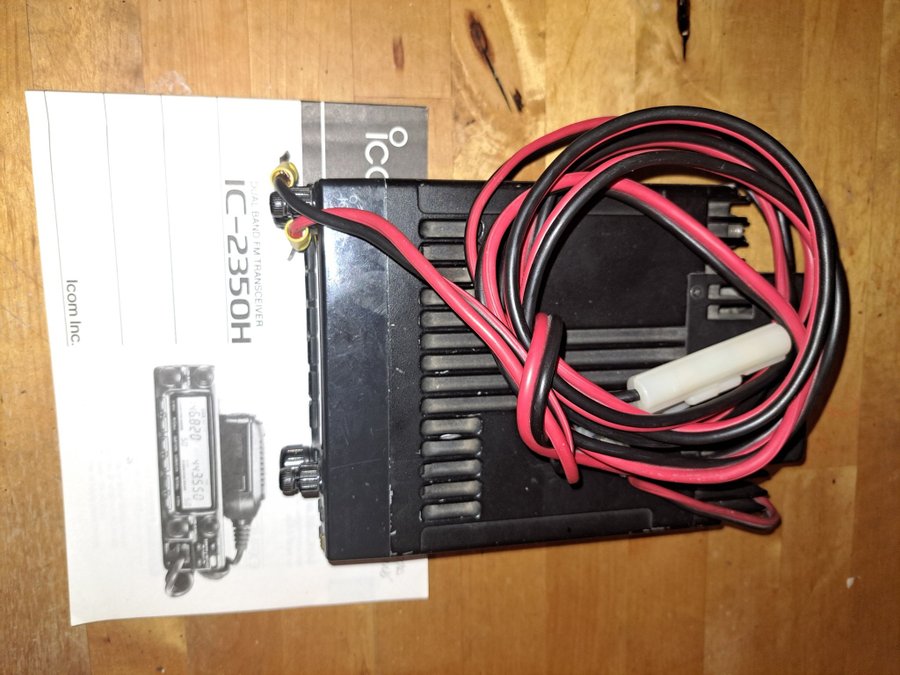

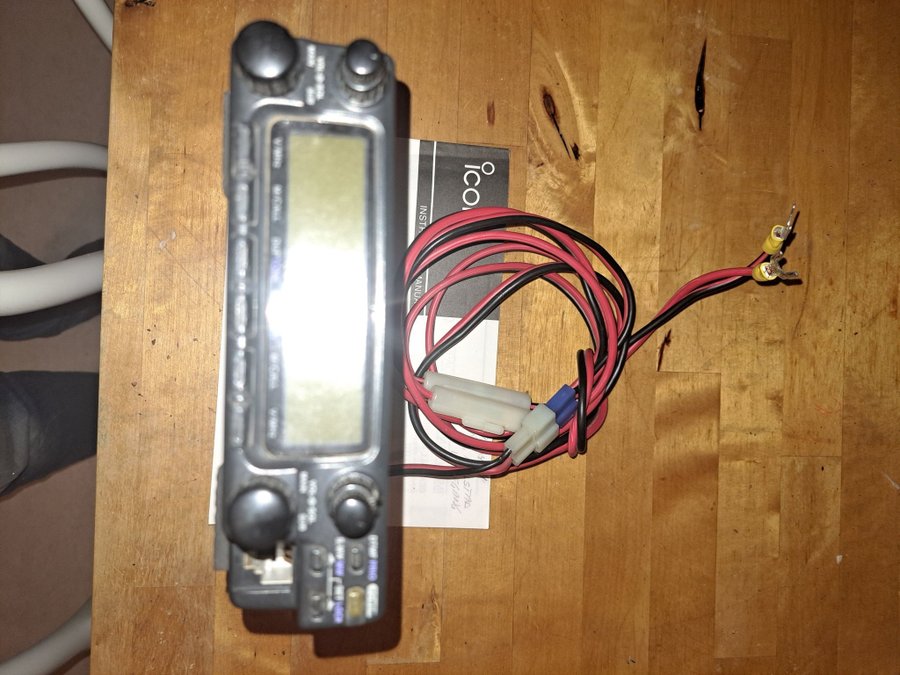

Icom IC-2350H

SPECIFICATIONS
GENERAL

Type: Amateur VHF/UHF transceiver

Frequency range: Europe

TX: 144-146 / 430-440 MHz

RX: 118-174 / 320-479 / 830-950 MHz

(The wide RX frequency range may require modification for some markets)

Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz

Frequency stability: ±? ppm @ -10 to +60°C (14 to 140°F)

Mode: TX: FM

RX: AM / FM

Channels / memory management: 100 regular (50 per band)

2 call (1 per band)

4 scratch pad (2 per band)
2 scan edge pairs (1 per band)
Priority watch
Non-volatile EEPROM storage
Repeater shift / offset: Programmable
Power supply: 13.8 VDC ±15%
Current drain / power consumption: RX: 1.2 to 1.8 A
TX: 4.5 to 11.5 A
Antenna impedance / connector: 50 ohm / SO-239
Dimensions (W*H*D): 140*40*204 mm (5.51*1.58*8.03")
Weight: 1.2 Kg (2.65 lb)
Other features: CTCSS/PL encoder (Optional decoder). Scanning. Dimmer. Twin RX.

RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 17.2 MHz (VHF), 30.85 MHz (UHF)
2nd IF: 455 KHz
Sensitivity: 0.16 uV (12 dB SINAD)
Selectivity: 15 KHz (-6 dB)
30 KHz (-60 dB)
Image rejection: >60 dB
AF output power / speaker: 2.4 W at 10% distortion / 8 ohm
External speaker connector:

TRANSMITTER SECTION
RF output power:

High Mid Low

2 m: 50 W 10 W 5 W

70 cm: 35 W 10 W 5 W

Modulation system: Variable reactance frequency modulation
Max FM deviation (Factory set): ±5 KHz
Spurious emissions: Better than -60 dB
Microphone impedance / connector: 600 ohm / 8-pin modular
Microphone input level: ? mV

Tillbehör

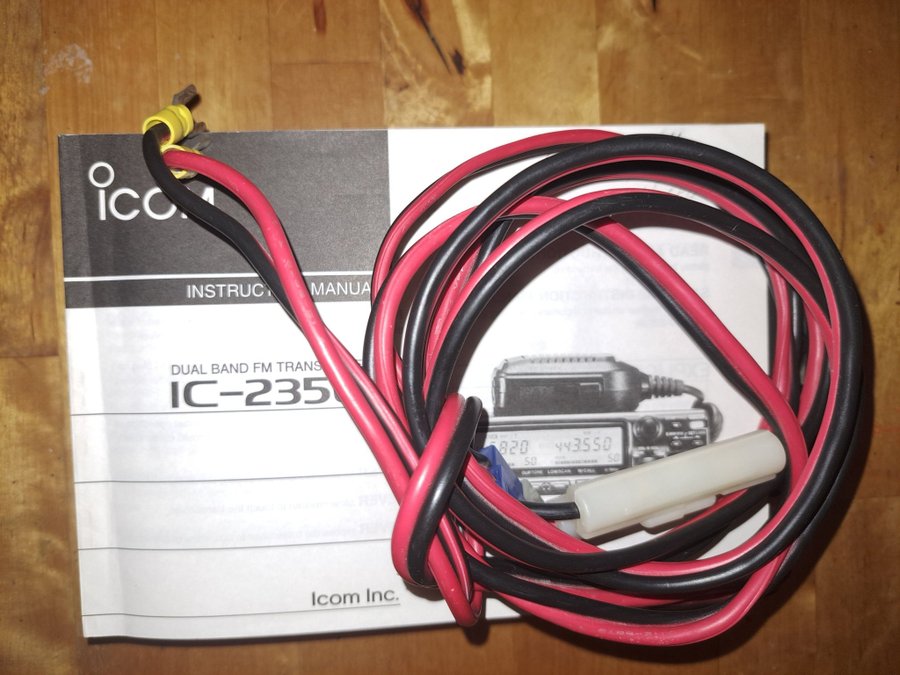

12v strömkabel

Manualbok med ochså

Ingen mobilfäste finns heller

Ingen mick och fick låna en mick och pröva att radion gick att sända med och bra mottagning så radion fungera

Ni kanske ha sånt av dessa mickarna liggande

HM-77/A
HM-78
HM-79
HM-95
HM-96
HM-97
