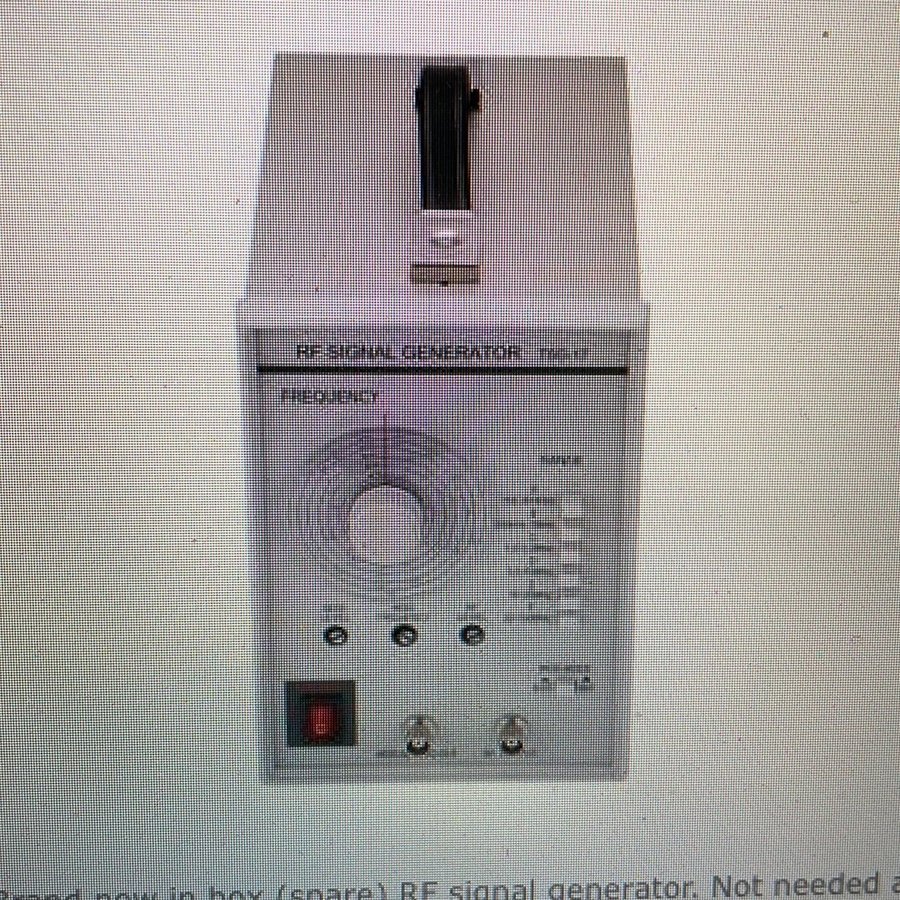

TSG-17 100kHz-150mHz RF Signal Generator

Brand new in box (spare) RF signal generator. Not needed any longer as I now have a programmable 1 GHz Signal Generator.

This model has been tested before being offered for sale BUT the frequencies outputted at the edges of selected bands are sometimes a little out.

However, the frequencies at the centre of the bands are more accurate and all frequencies are easily adjustable. A frequency meter would be required to check that accurate signals are to be generated and the device remains stable once a frequency is set.

Specifications:

Frequency Ranges:

A: 100 KHz to 300 KHz;
B: 300 KHz to 1MHz;
C: 1MHz to 3.2MHz;
D: 3MHz to 10MHz;
E: 10MHz to 35MHz;
F: 32MHz to 150MHz

- Frequency Accuracy: ±5%
- Output Waveform: RF/AM signal waveform
- Output Impedance: 600O
- 0utput Radio Frequency: >100Mvrms (when frequency=35MHz)
- Level Control: 1mV to100mV
- External Modulation: 150Hz to 1.5 KHz. Adjustable amplitude from 0 to 30%
- Operation Environment: 50Hz to 20KHz
- Temperature/Humidity: 10 ? to 35?/ 85%RH
- Power Supply: 220V±10%, 50Hz
- Dimension: 239 x 140 x 200mm
- Weight: 2.5kg

Photos of outputs are available on request.
