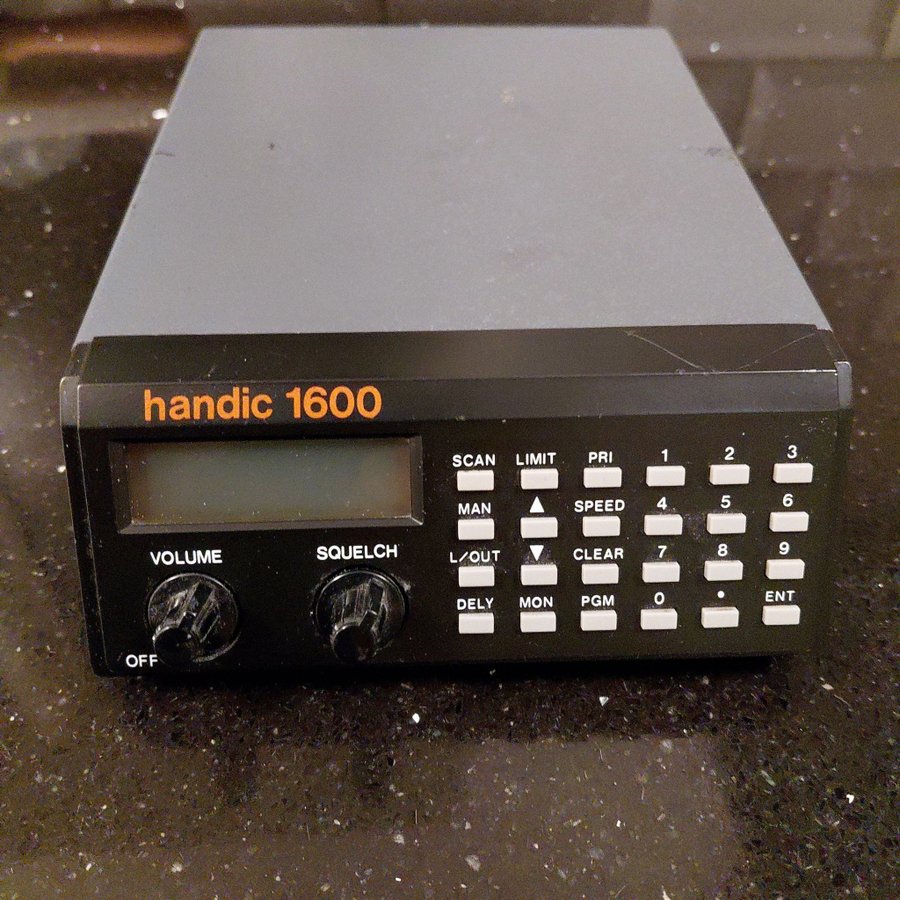

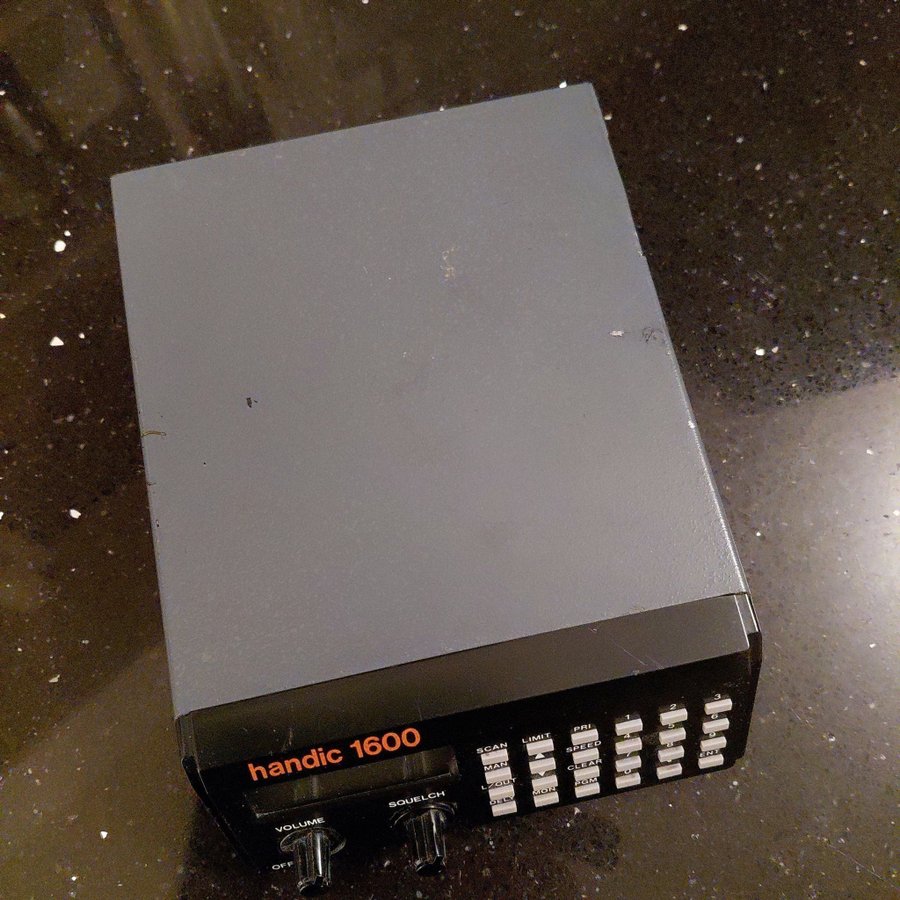

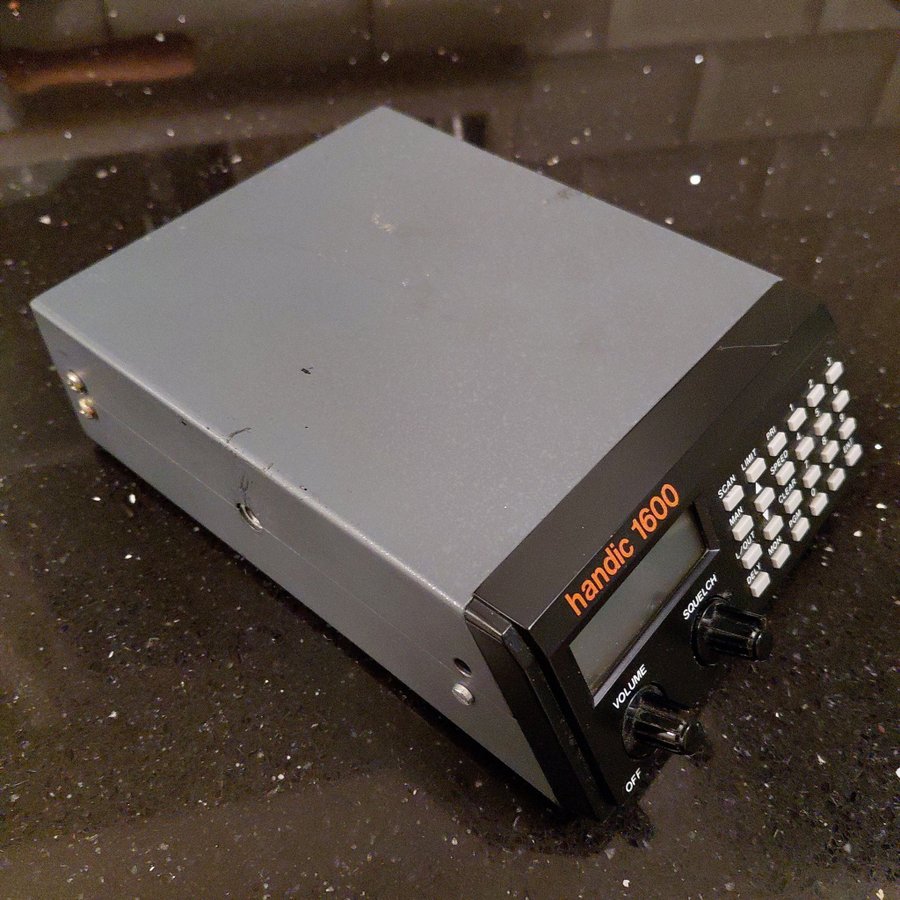

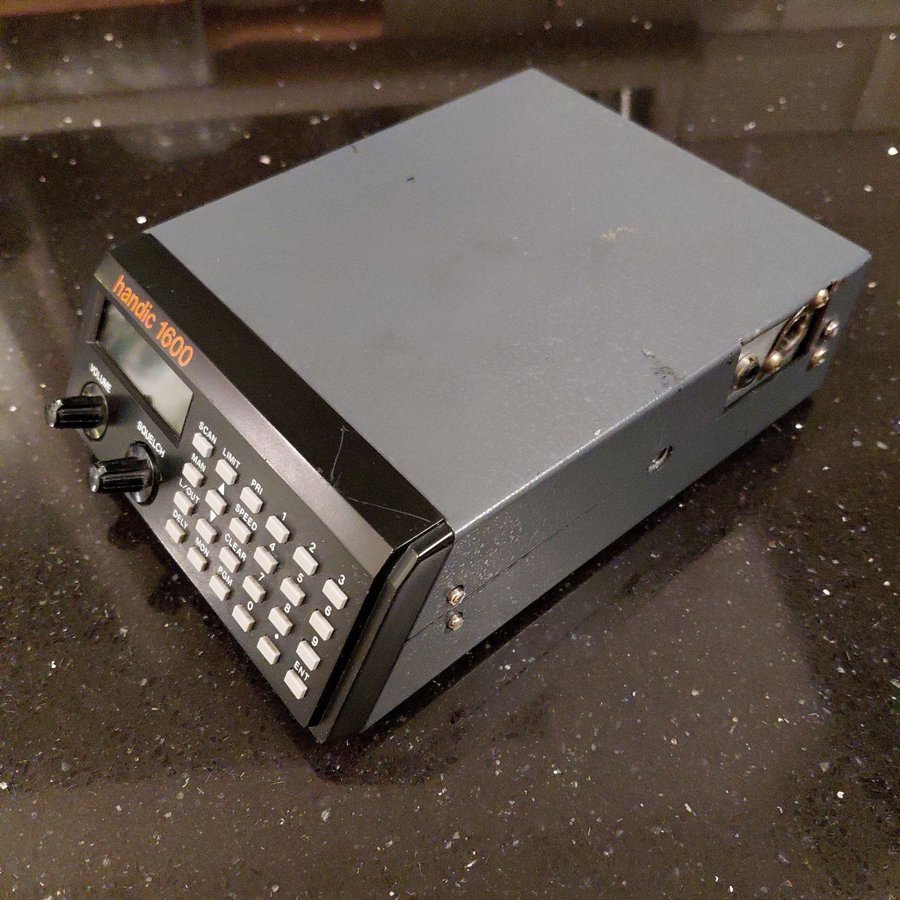

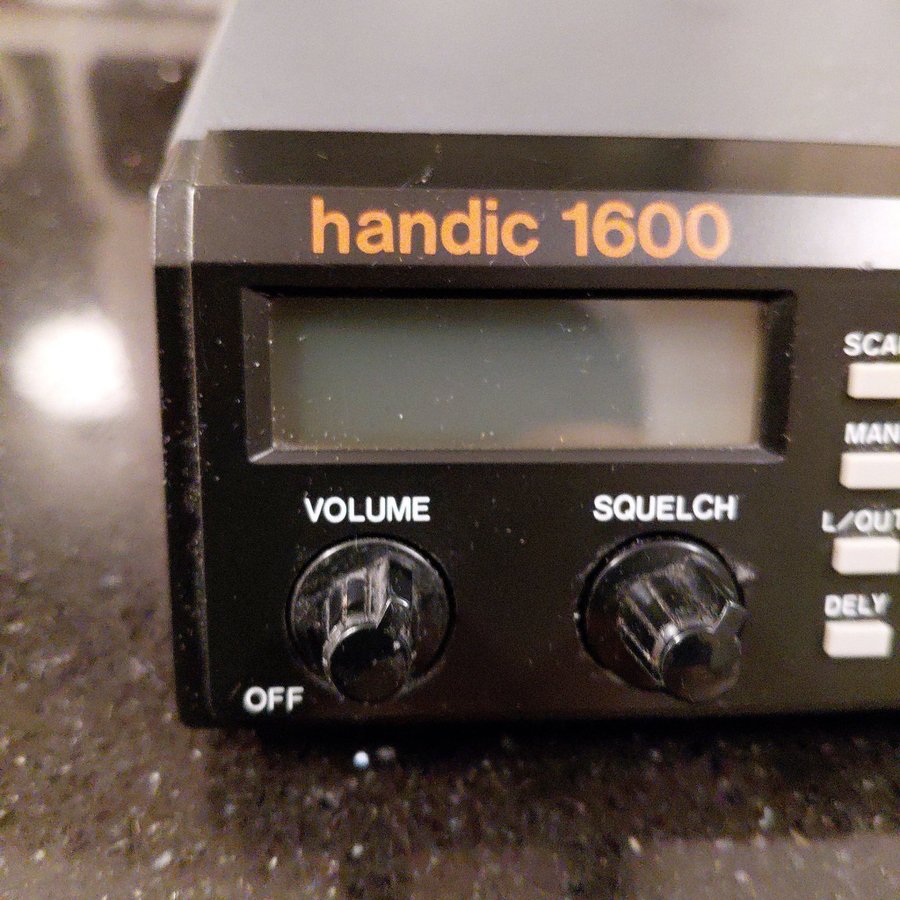

Handic 1600 VHF/UHF receiver/scanner

Fungerande

SPECIFICATIONS
GENERAL
Type: VHF/UHF receiver/scanner
Frequency range: 68-88 / 108-136 / 138-174 / 380-512 MHz
Tuning steps: VHF: 5 KHz
Air: 25 KHz
UHF: 12.5 KHz
Frequency stability: ? ppm
Mode: AM / FM
Channels / memory management: 16 regular @ 5 or 10 channels per second
1 priority
RAM storage with 9 V battery backup
Power supply: 12 VDC
Current drain / power consumption: 120 mA (Squelched)
Antenna impedance / connector: 50-75 ohm / DIN41585 (Motorola)
Dimensions (W*H*D): 130*50*180 mm (5.12*1.97*7.09")
Weight: 1.1 Kg (2.42 lb), without mobile bracket
Other features:

RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity: AM 108-136 MHz: 2 uV (20 dB S/N)
FM 68-88 MHz: 0.5 uV (20 dB S/N)
FM 138-174/380-512 MHz: 1 uV (20 dB S/N)
Selectivity: 18 KHz (-6 dB)
30 KHz (-50 dB)
Image rejection: 50 dB @ 154 MHz
AF output power / speaker: 1.5 W at ?% distortion / 8 ohm
External speaker connector: 3.5 mm

MISCELLANEOUS
Manufactured: Japan (By GRE), 1984-198x (Discontinued)
Additional info: New price 1987 in Sweden: SEK 2635:-
