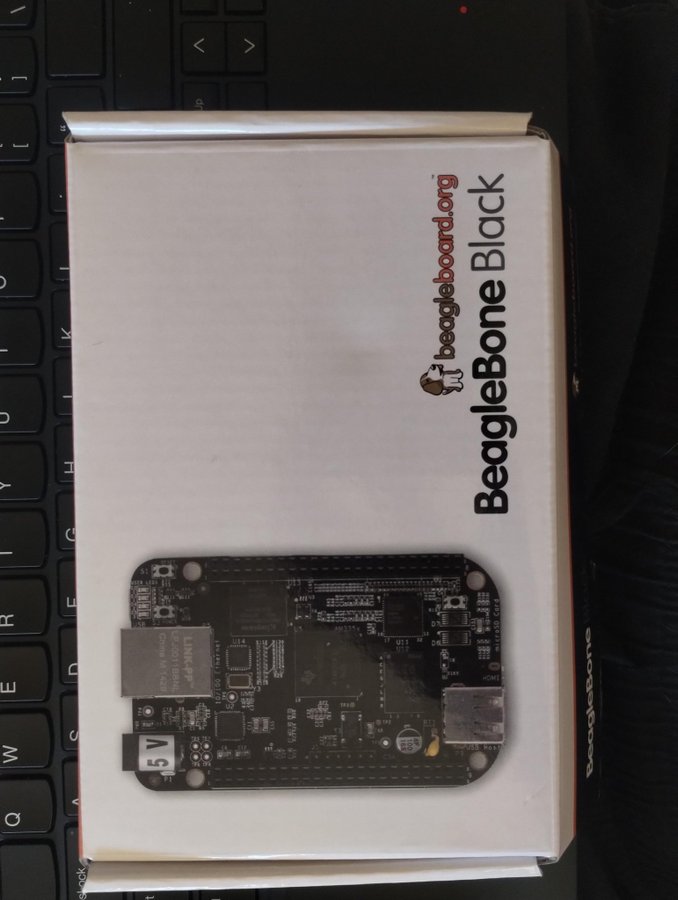

Beaglebone Black SBC

Avslutad 18 jan 12:35

Slutpris

139 kr

148 kr med köparskydd.

anders_bzn vann auktionen



colloquial

Malmö, Sverige

colloquial

Verifierad

22 omdömen

Beskrivning

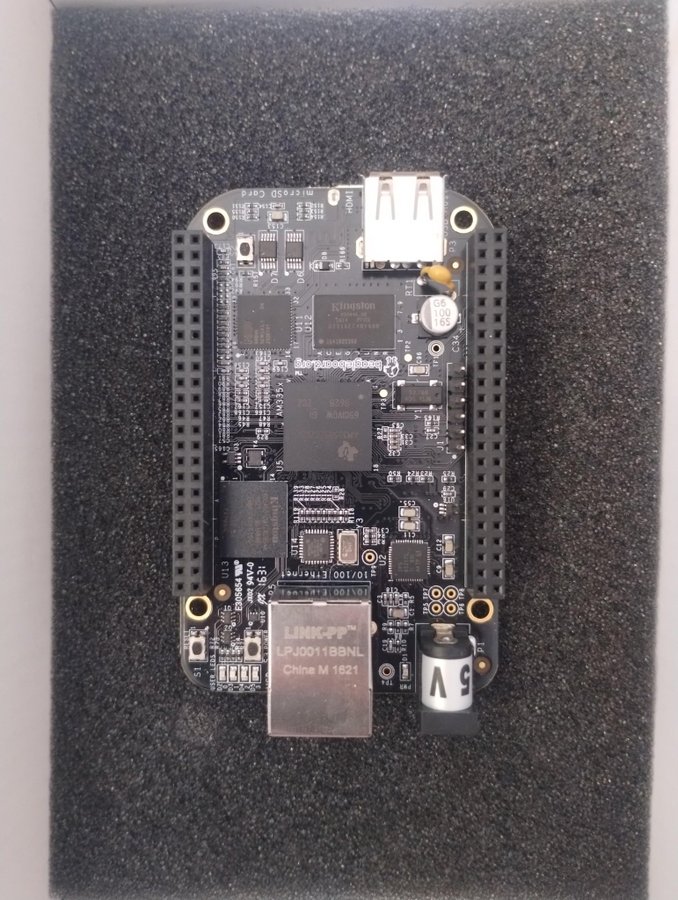

Classic single board computer.

Texas Instruments Sitara AM3358

  • 1GHz ARM® Cortex-A8
  • SGX 3D Graphics Engine
  • NEON floating-point accelerator
  • 2×32-bit 200-MHz programmable real-time units (PRUs)
  • Memory

    • SDRAM: 512MB DDR3L 800MHZ
    • Onboard Flash: 4GB, 8bit Embedded MMC (eMMC)
  • SD/MMC Connector for microSD
  • Power management:TPS65217C PMIC is used along with a separate LDO to provide power to the system
  • Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
  • Power Source

    • miniUSB USB or DC Jack
    • 5VDC External Via Expansion Header
  • Connectivity

    • High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
    • High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HS
    • Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated
    • 10/100M Ethernet (RJ45)
  • User Input / Output

    • Reset Button
    • Boot Button
    • Power Button
    • LED power indicator
    • 4 user configurable LEDs
  • Video/Audio Interfaces

    • HDMI D type interface
    • LCD interface
    • Stereo audio over HDMI interface
  • Expansion Interfaces via 2x 46 pin headers

    • LCD, UART, eMMC
    • ADC, I2C, SPI, PWM
  • Compact Size of a Mint Tin

https://www.beagleboard.org/boards/beaglebone-black
