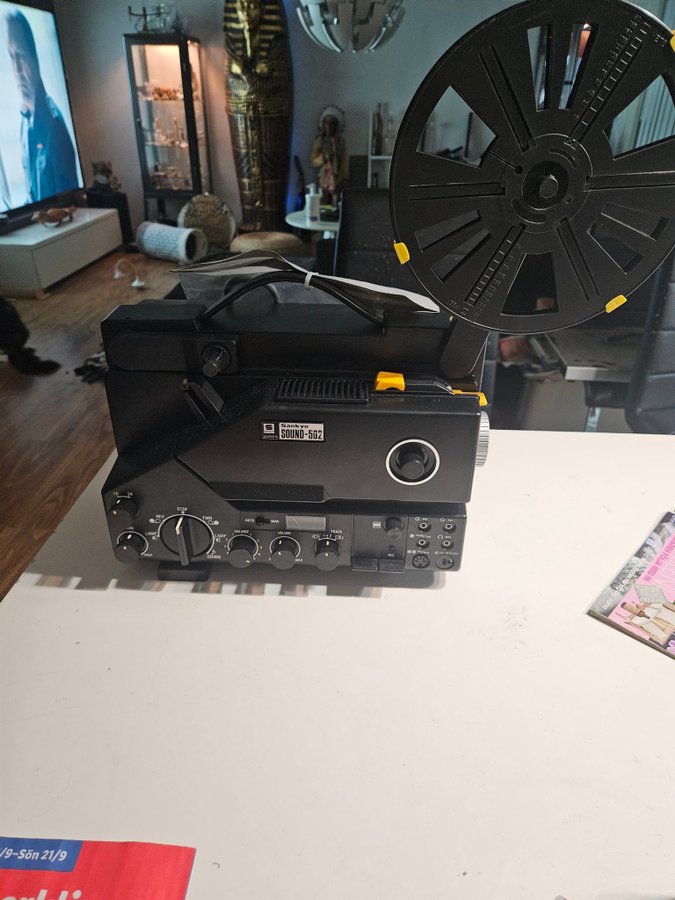

Sankyo Sound-502 Super 8 projektor för visning av Super 8-filmer. Denna modell har ljudfunktion och diverse inställningsmöjligheter för både bild och ljud. Anslutningar för mikrofon, hörlurar och externa högtalare finns. Lampan är 100W 12V.

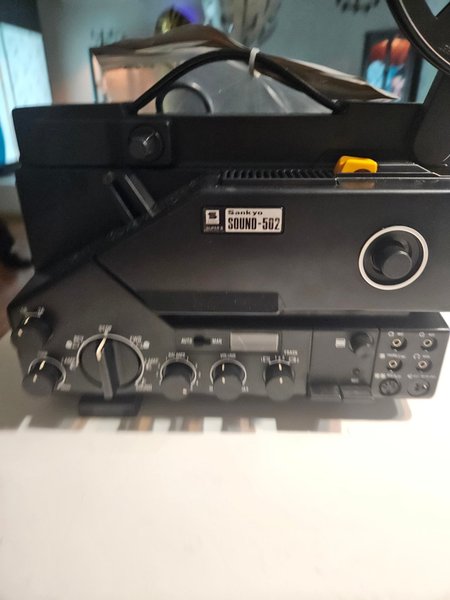

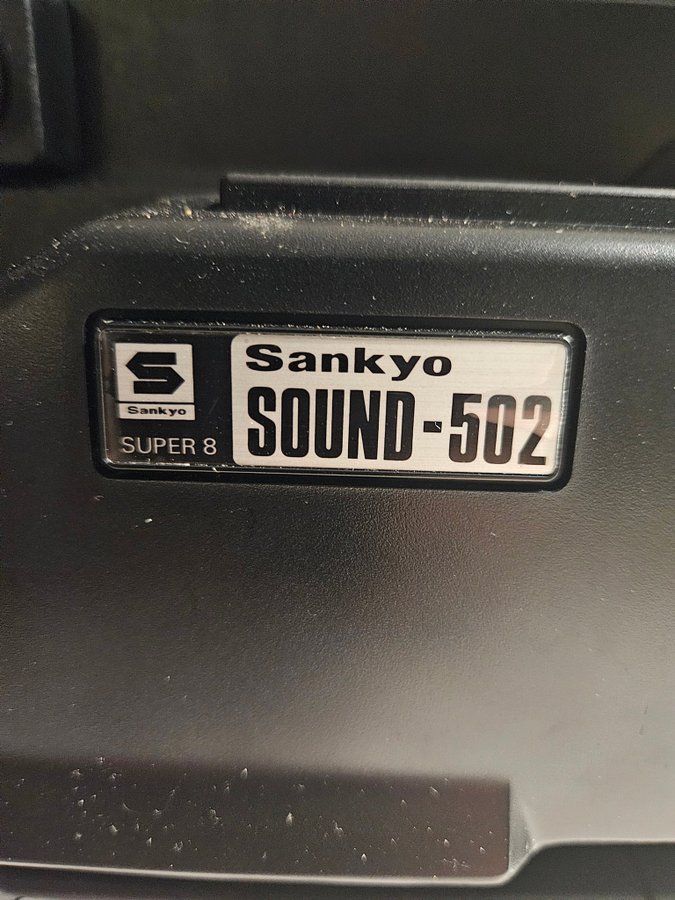

Sankyo Sound 502

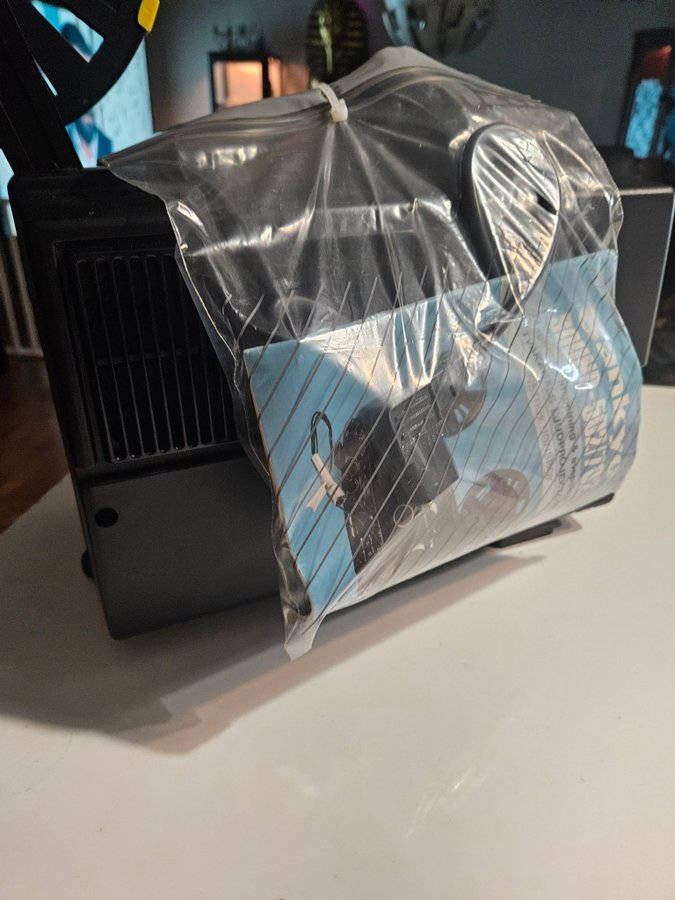

Med manual

marketed in 1977-78

super 8 mm film

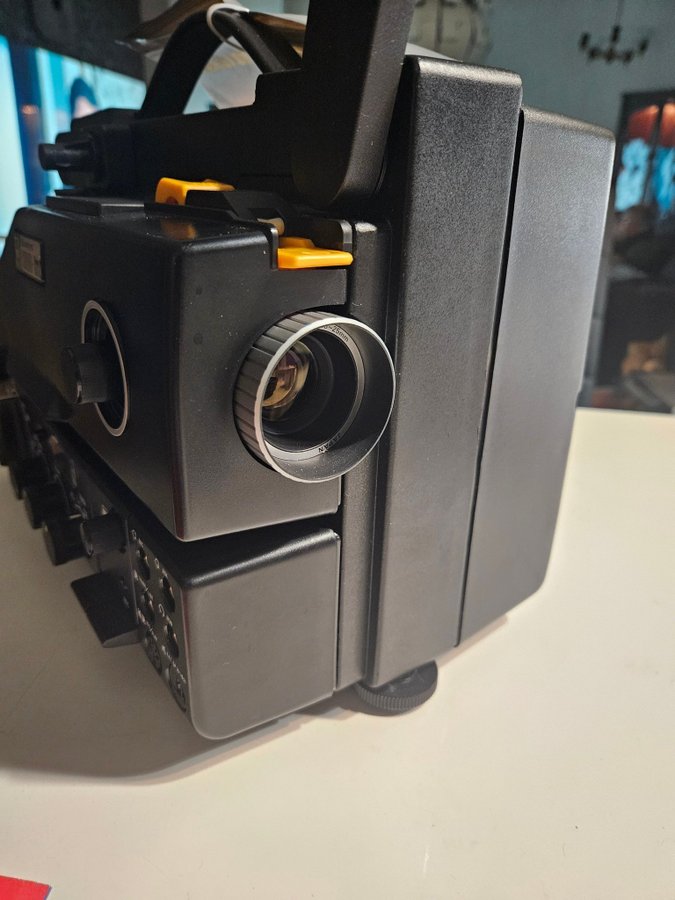

lens: Sankyo Zoom f: 1.4 F: 15-25 mm

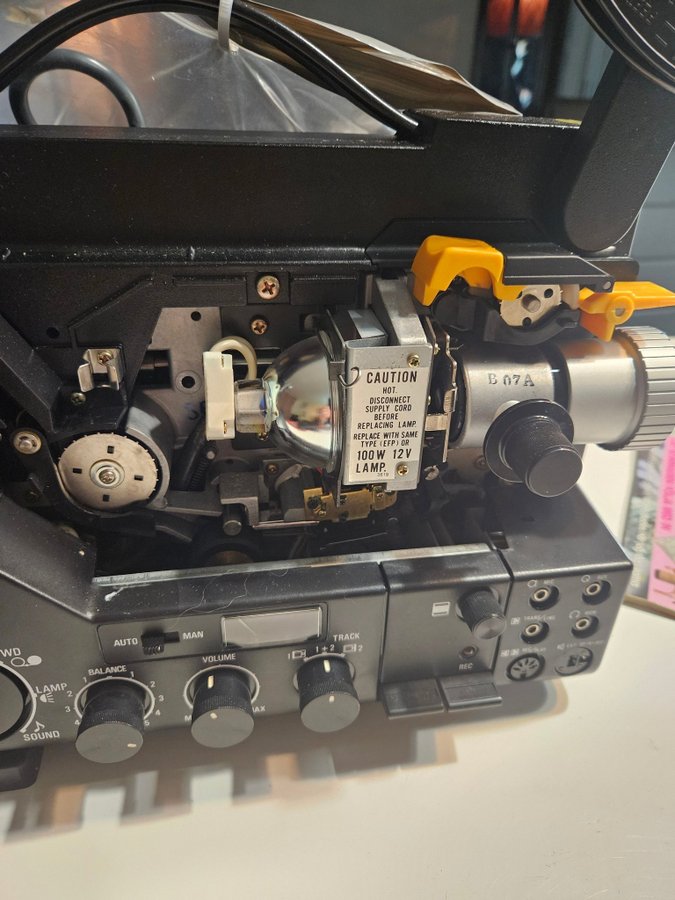

lamp: 100 W, 12 V, EFRP

reel capacity: 180 m

projection: forward, reverse

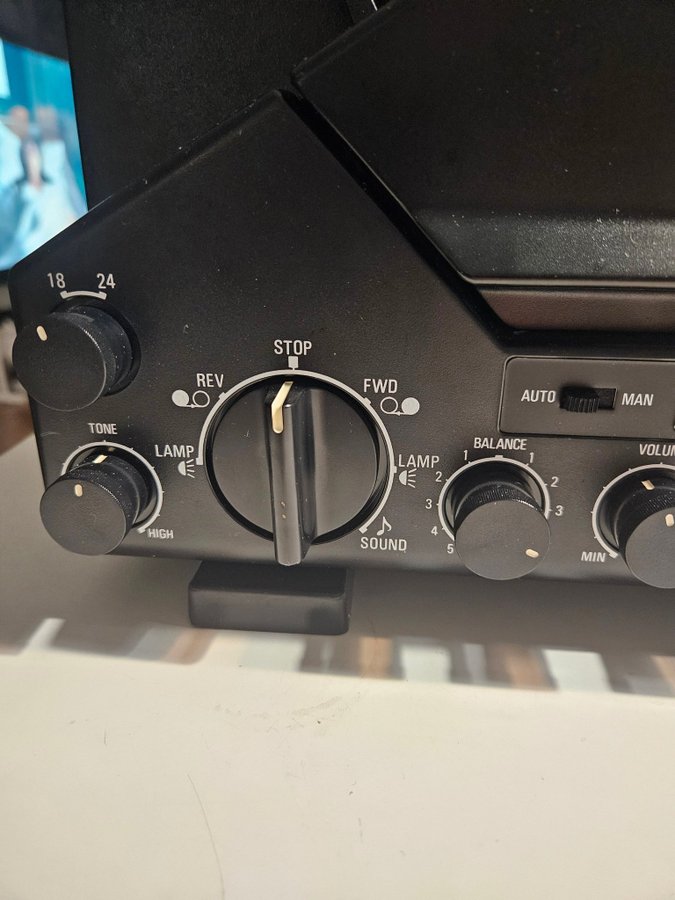

projection speed: 18, 24 fps, by selector switch

film loading: automatic threading

sound: magnetic playback on both sound tracks

sound mode: mono, duo

amplifier: transistorized

amplifier output: 4 W (8 Ohm)

recording: magnetic on both tracks, sound-on-sound

recording level control: auto and manual

VU meter: recording can be monitored with VU meter

input terminal: Microphone, Phono, DIN

input jacks: Mic, Pho: 3.5 mm diameter jack; DIN: 5-pin DIN (European type)

output terminal: Earphone, Line-out, DIN, Ext Speaker (4 W, 8 Ohm)

output jacks: Monitor, Line-out: 3.5 mm diameter jack; DIN: 5-pin DIN (European type); Ext Sp: 6.5 mm diameter jack or 2-pin DIN

built-in speaker: 2 W

built-in film cutter: yes

motor: magnetic motor

power source: 100-125-220-240V AC, 50/60 Hz, 220 W

weight: circa 9000 g

dimensions: 190 x 224 x 324 mm

made in Japan by Sankyo
