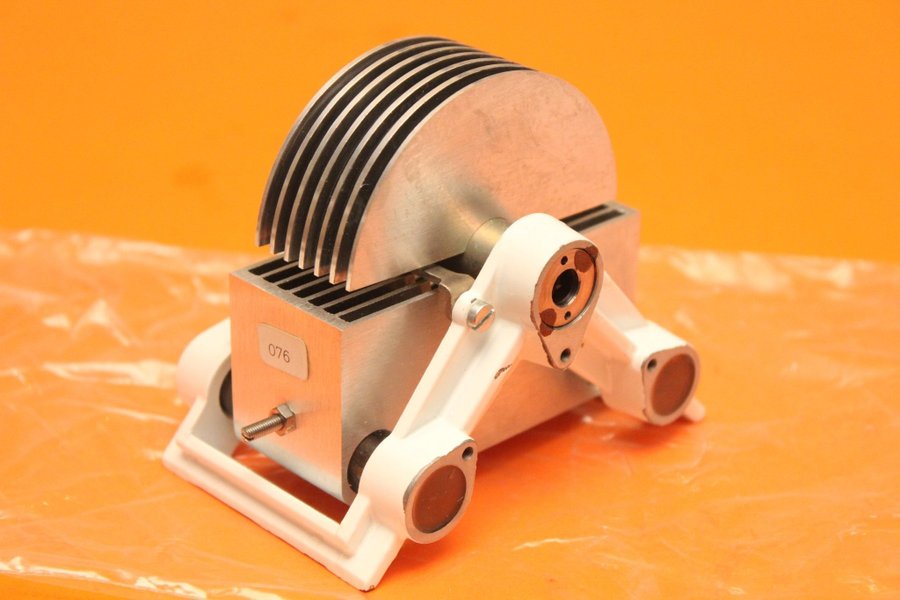

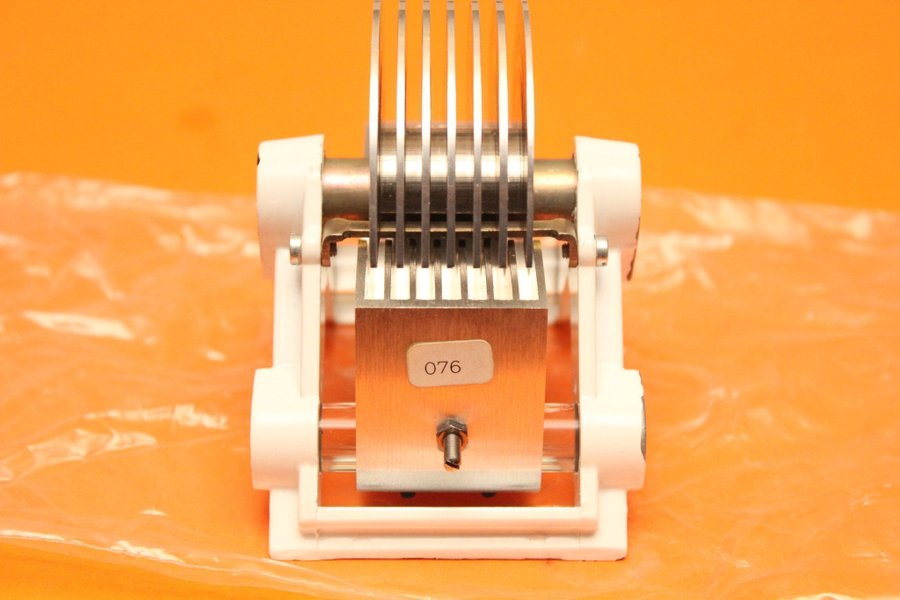

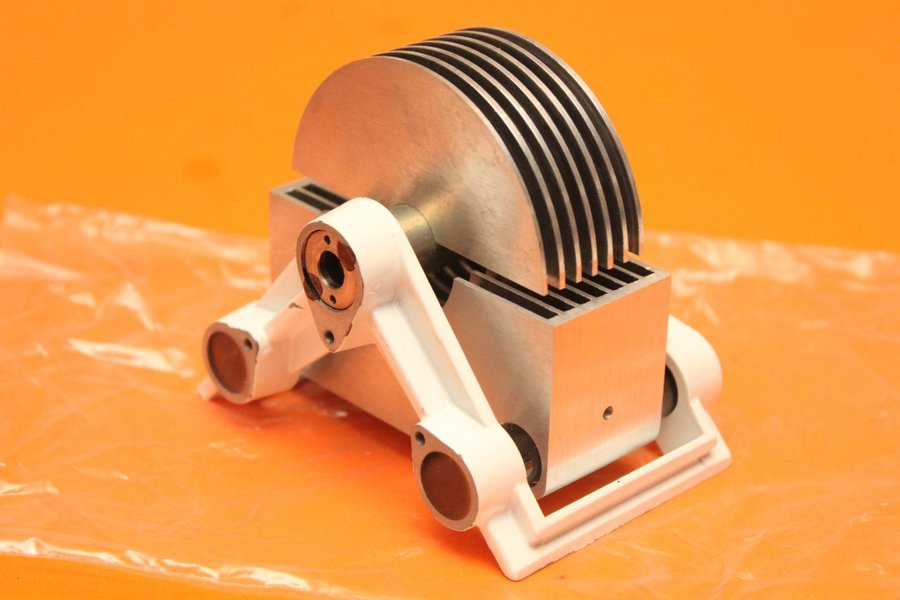

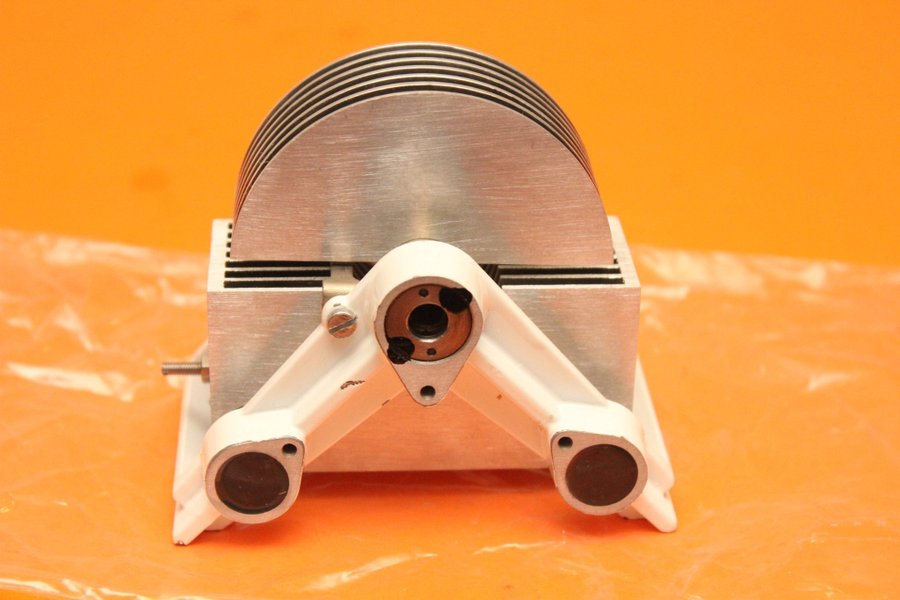

Up for sale, precision high quality air variable capacitor made by Ducati - Italy
It is a high quality capacitor of which the stator and rotor sections are each a single block of machined aluminium. The stator hangs on four glass insulators and the rotor is on ball-bearings. The frame is white painted cast aluminium. All this is done to achieve the high accuracy needed for its purpose which is to be the main variable capacitor in VFO
Size appx. 90 x 60 x 60 mm 3.55 x 2.37 x 2.37 inch
Single gang - air spaced
Minimum capacitance is 6pf 6 pf
Maximum capacitance is 250pf 250 pf
Rated 1500V 1500 V
Manufacturer part No. EC3201 201.6
NEW IN BOX
Please note: The item is located in Belgrade - Serbia and will be shipped via Registered Air Mail
It is a high quality capacitor of which the stator and rotor sections are each a single block of machined aluminium. The stator hangs on four glass insulators and the rotor is on ball-bearings. The frame is white painted cast aluminium. All this is done to achieve the high accuracy needed for its purpose which is to be the main variable capacitor in VFO
Size appx. 90 x 60 x 60 mm 3.55 x 2.37 x 2.37 inch
Single gang - air spaced
Minimum capacitance is 6pf 6 pf
Maximum capacitance is 250pf 250 pf
Rated 1500V 1500 V
Manufacturer part No. EC3201 201.6
NEW IN BOX
Please note: The item is located in Belgrade - Serbia and will be shipped via Registered Air Mail
