Detta kit består av en Accel 300+ tändbox (motsv MSD6AL) och en kontrollbox ACCEL 375+

375+ boxen har flera programmerbara funktioner,

3 olika varvstopp (tex. till burnout, launch och maxvarv)

Start retard (lätt start, spar på startmotorn och batteriet)

Window switch (lämpligt för t.ex. säker aktivering av lustgas)

Boost timing retard (mapsensor ingår ej) även vakuum styrt.

Display för visning och enkel justering av alla parametrar, kan sitta kvar i kupén eller tas bort efter justeringar.

läs gärna länken med instruktioner nedan för 375+ och 300+.

These ACCEL 300+ digital ignitions feature high-speed processing, maximum energy output, and greatly enhanced efficiency due to the use of the latest generation of RISC micro-controllers. They provide a multiple-spark discharge of up to 2,500 rpm with 500 V and 125mJ of energy output for easier starting and greater burn efficiency, which also results in quicker acceleration and improved throttle response. ACCEL 300+ digital ignitions have a rev limiter that lets you dial-in top rpm without installing chips, and their smaller size means less weight and more mounting options. To top it all off, ACCEL 300+ digital ignitions have a built-in upgrade to allow the use of the ACCEL 375+ digital ignition control module.

Manual:

http://www.jegs.com/InstallationInstructions/100/110/110-49300.pdf

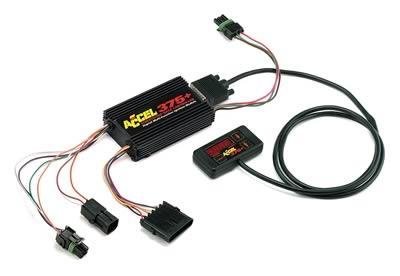

These ACCEL 375+ digital ignition control modules feature a compact control unit that can be mounted out of sight inside the car, with a remote display/input unit close at hand for real-time programming or observation. The hand-held display/input unit and 6 ft. cable can also be unplugged from the control unit after programming. The ACCEL 375+ digital ignition control modules' harness plugs directly into the 300+ ignition control box harness, allowing the custom software and dual RISC microprocessors to fully interface with each other. This provides unparalleled capabilities and high-speed processing, resulting in seamless performance. For ignition components from a name you can trust, you need the ACCEL 375+ digital ignition control modules.

Manual:

http://www.jegs.com/InstallationInstructions/100/110/110-49375.pdf
