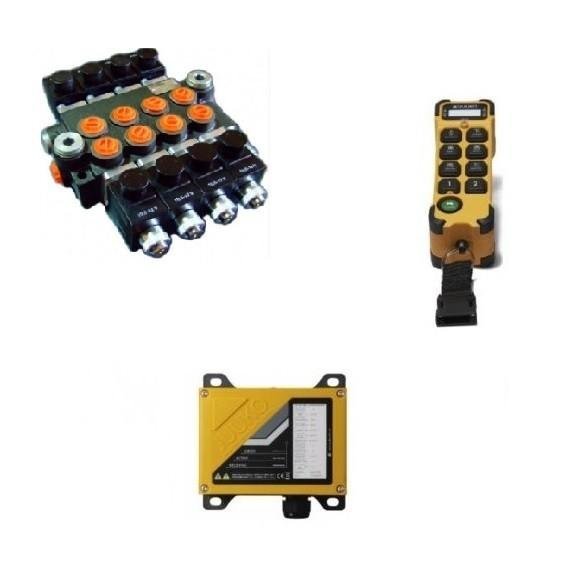

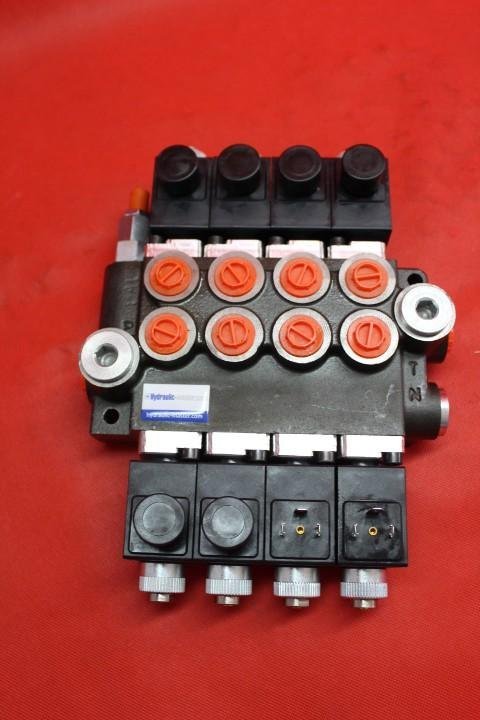

Technical parameters for monoblock:
Modification / Spools with 1 to 7
Nominal flow 50 l/m
Internal leakage A(B)-T,P=100 bar viscosity 35 cSt max 18 ccm/min
Spools , Schemes Spool A ; D
Spool Stroke 3.2 mm
Coils , connector ISO 4400 12VDC,24VDC
Threads P,T - G1/2,SAE 10 A,B-G3/8, SAE 8

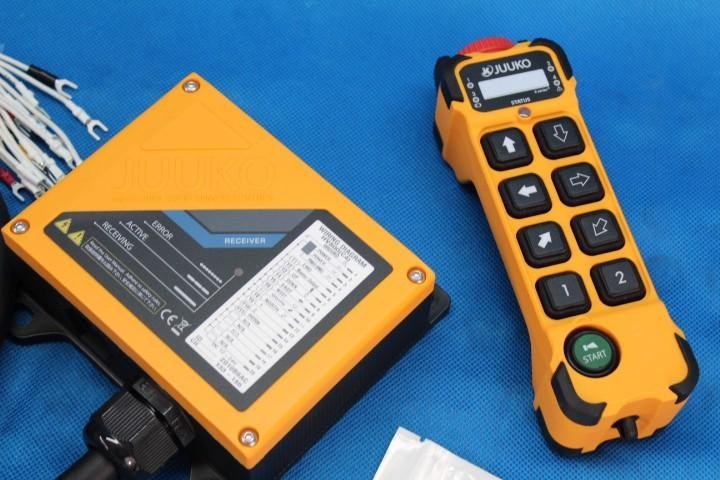

Control panel Juuka K1000 +reciver
Independent LED’s,indicate the status of the battery.
Switching power system.
Activation of the transmitter is protected by an electronic key-code and an auto shut-off option which is programmable.
The system automatically change to a another frequency in the presence of radio interference.
Eco power management system. Save on batteries.
It can receive and display via LED 1 and LED 2, signals coming from the machine control system (relay action feedback).
Mushrooms type EMO button.
Internal BootLoader, up firmware to the date from JUUKO’s website.
Wireless pairing procedure using the keyboard pushbuttons.
Frequency band 433MHz~434MHz
Modulation method GFSK
Typical operating range 100 m
Control system PLL
Antenna impedance 50Ω
Typical response time for Stop command and commands 50ms ~ 100 ms
Power supply LR6(AA)1.5V x2
Average power consumption 8mA@DC3V
Operating and storage temperature (-20°C)~(+55°C)/(-40°C)~(+65°C)
Radio-frequency power <10dbm
Protection degree IP65
Dimensions 193x57x51 mm
Weight 226g
Housing material PA (30% GF)
K1000 10 PUSHBUTTON SINGLE SPEED

---------------
Frakt: Posten /TNT

Vi kommer att skapa annonser på tradera för erforderlig produkt. Skicka oss registreringsnummer, vi skickar rätt delar till dig.
