Beskrivning
Säljer ett par Black Box KVM extenders.

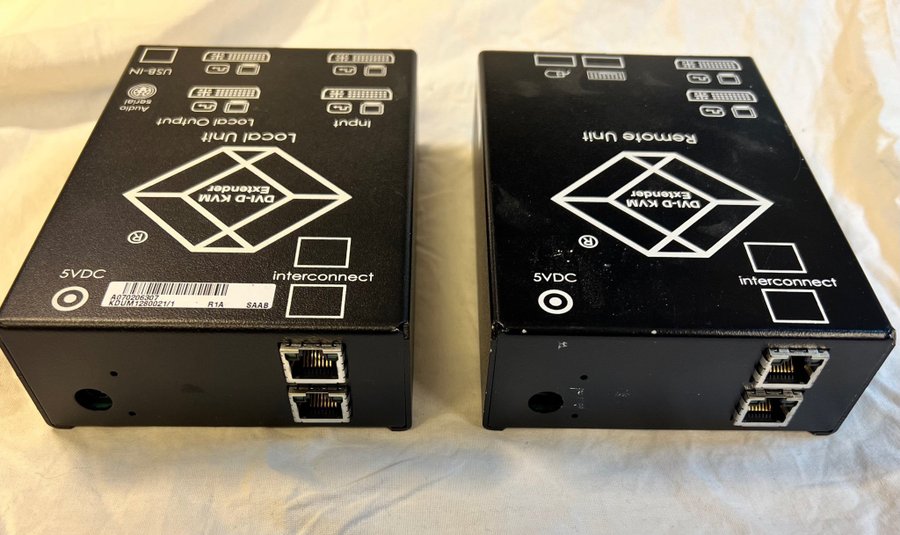

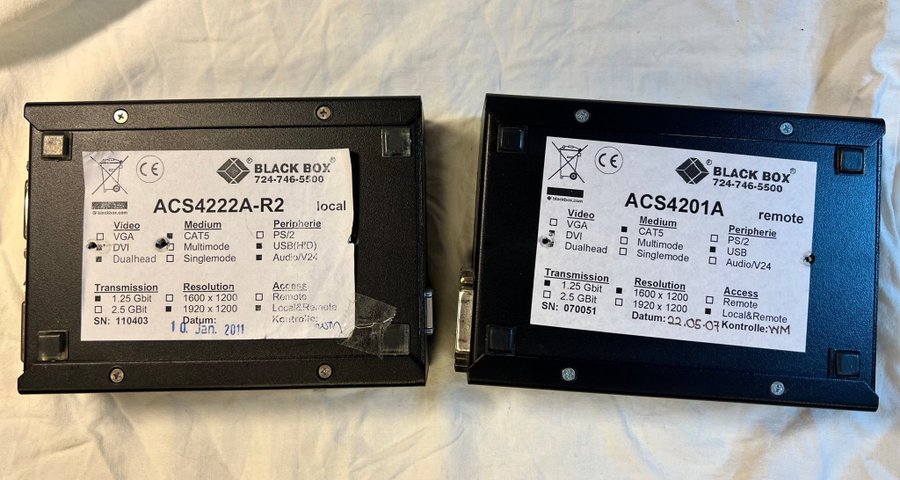

Modell Local Unit: ACS4222A-R2
Modell Remote Unit: ACS4201A
Användes till att fjärrstyra en serverdator så att den kan styras från två arbetsplatser med nätverkskablar emellan.
Perfekt om du har servern i friggeboden och vill kunna styra den både lokalt och remote.
Det behövs 2st 5V DC adaptrar och diverse skärmar med kablar och USB mus och tangentbord för att rigga upp allt.
Har varit i drift men har nu legat ett bra tag. Tror Att de fortfarande fungerar, men har inte grejer att testa.
Se internet för anslutningsmöjligheter och detaljer.
Säljes i befintligt skick
Från internet:
( https://www.kvm-switches-online.com/acs4201a-r2.html?srsltid=AfmBOopGcNkwSJnA8bSqxQ4YSetB7VFewjPTVD14xfAS4q0LVvptIkJX )
KVM Extender - Dual-D, USB HID, Local Pass Thru, CATx
ACS4201A-R2
Cost $3,106.83
With ServSwitch™ Dual DVI CATx KVM Extender, USB, you can send your keyboard, mouse, and DVI-D video signals up to 400 feet (122 m) over CAT5, CAT5e, or CAT6 cable. This new version has a 1920 x 1200 resolution at 60 Hz and an adaptive 18/21-bit color depth. It also features more memory for firmware and 256-byte DDC.
This USB extender works with a USB keyboard and mouse. Connect a keyboard, mouse, and up to two DVI-D monitors directly to the computer on the transmitting end of the link and a KVM console with up to two DVI-D monitors on the receiving end. This method of dual access enables you to use your computer at either location.
This KVM extender is built for today's computers with dual video heads - you can connect up to two DVI-D monitors directly to the computer on the transmitting end of the link and two DVI-D monitors at the receiving KVM console.
Imagine what you can do with more monitors connected to your computer. You can put a different application on each monitor to eliminate tedious switching between applications. Or if you have an application that uses lots of small windows, you can expand it across both monitors to provide more workspace.
ACS4201A-R2 Features:
(2) Separate DVI-D video with resolutions up to 1920 x 1200 at 60 Hz.
USB Human Interface Device (HID)
CATx connections supports up to distance 400-ft.
Uses inexpensive CAT5/5e/6 cable.
ACS4201A-R2 Diagram
Product Includes
DVI-D CATx KVM Extender pair (local unit and remote unit)
Technical Specifications
General
CE Approval Yes
Distance (Maximum) 24 AWG: 400 ft. (121.9 m); 26 or 28 AWG: 200 ft. (60.9 m)
Operating Environment Temperature: 41 to 113° F (5 to 45° C); Humidity: Up to 80% noncondensing
Power 90-240 VAC, 47-63 Hz, autosensing, external, with IEC 320 connector and cord
Resolution (Maximum) 1920 x 1200 at 60 Hz
Item Specifications

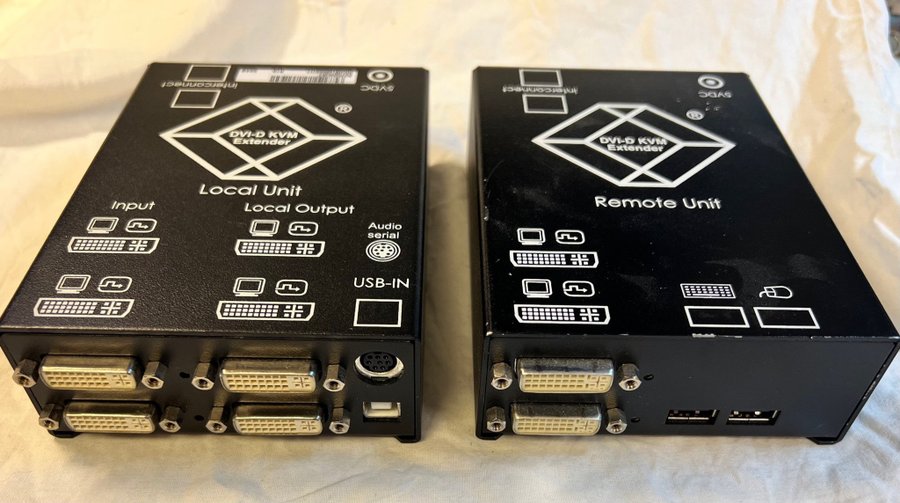

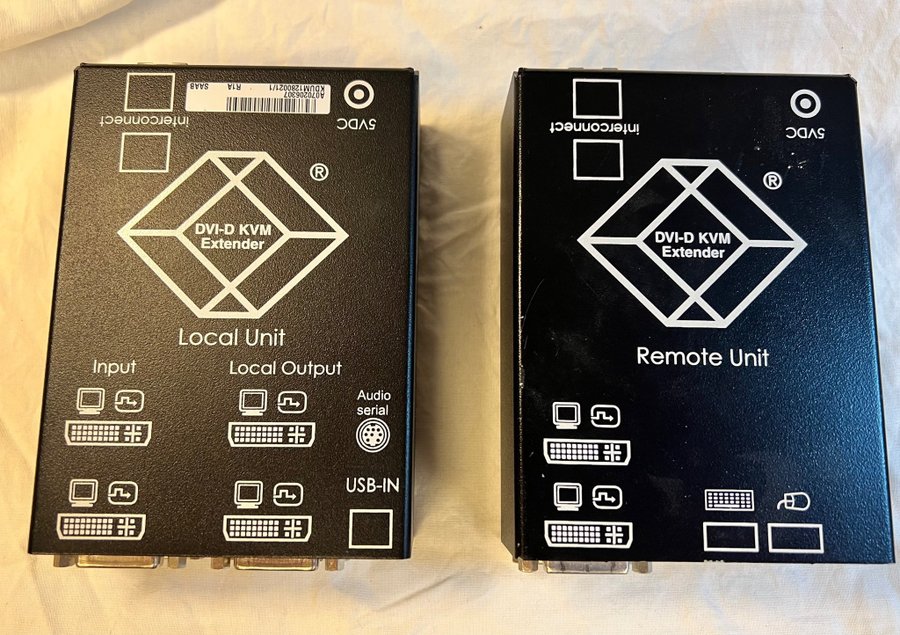

Connectors Local unit: Keyboard and mouse: (1) USB Type B F; Monitor: (4) DVI-D F; Interconnect: (2) RJ-45; Remote unit: Keyboard and mouse: (2) USB Type A F; Monitor: (2) DVI-D F; Interconnect: (2) RJ-45
Dimensions 1.6"H x 4"W x 5.6"D (4.1 x 10.2 x 14.2 cm)
Weight 1.3 lb. (0.6 kg) each
Modell Local Unit: ACS4222A-R2
Modell Remote Unit: ACS4201A
Användes till att fjärrstyra en serverdator så att den kan styras från två arbetsplatser med nätverkskablar emellan.
Perfekt om du har servern i friggeboden och vill kunna styra den både lokalt och remote.
Det behövs 2st 5V DC adaptrar och diverse skärmar med kablar och USB mus och tangentbord för att rigga upp allt.
Har varit i drift men har nu legat ett bra tag. Tror Att de fortfarande fungerar, men har inte grejer att testa.
Se internet för anslutningsmöjligheter och detaljer.
Säljes i befintligt skick
Från internet:
( https://www.kvm-switches-online.com/acs4201a-r2.html?srsltid=AfmBOopGcNkwSJnA8bSqxQ4YSetB7VFewjPTVD14xfAS4q0LVvptIkJX )
KVM Extender - Dual-D, USB HID, Local Pass Thru, CATx
ACS4201A-R2
Cost $3,106.83
With ServSwitch™ Dual DVI CATx KVM Extender, USB, you can send your keyboard, mouse, and DVI-D video signals up to 400 feet (122 m) over CAT5, CAT5e, or CAT6 cable. This new version has a 1920 x 1200 resolution at 60 Hz and an adaptive 18/21-bit color depth. It also features more memory for firmware and 256-byte DDC.
This USB extender works with a USB keyboard and mouse. Connect a keyboard, mouse, and up to two DVI-D monitors directly to the computer on the transmitting end of the link and a KVM console with up to two DVI-D monitors on the receiving end. This method of dual access enables you to use your computer at either location.
This KVM extender is built for today's computers with dual video heads - you can connect up to two DVI-D monitors directly to the computer on the transmitting end of the link and two DVI-D monitors at the receiving KVM console.
Imagine what you can do with more monitors connected to your computer. You can put a different application on each monitor to eliminate tedious switching between applications. Or if you have an application that uses lots of small windows, you can expand it across both monitors to provide more workspace.
ACS4201A-R2 Features:
(2) Separate DVI-D video with resolutions up to 1920 x 1200 at 60 Hz.
USB Human Interface Device (HID)
CATx connections supports up to distance 400-ft.
Uses inexpensive CAT5/5e/6 cable.
ACS4201A-R2 Diagram
Product Includes
DVI-D CATx KVM Extender pair (local unit and remote unit)
Technical Specifications
General
CE Approval Yes
Distance (Maximum) 24 AWG: 400 ft. (121.9 m); 26 or 28 AWG: 200 ft. (60.9 m)
Operating Environment Temperature: 41 to 113° F (5 to 45° C); Humidity: Up to 80% noncondensing
Power 90-240 VAC, 47-63 Hz, autosensing, external, with IEC 320 connector and cord
Resolution (Maximum) 1920 x 1200 at 60 Hz
Item Specifications
Connectors Local unit: Keyboard and mouse: (1) USB Type B F; Monitor: (4) DVI-D F; Interconnect: (2) RJ-45; Remote unit: Keyboard and mouse: (2) USB Type A F; Monitor: (2) DVI-D F; Interconnect: (2) RJ-45
Dimensions 1.6"H x 4"W x 5.6"D (4.1 x 10.2 x 14.2 cm)
Weight 1.3 lb. (0.6 kg) each
