Max flow: 80 l/min (21 GPM)

All three-position sliders are spring-loaded, i.e. they return to the neutral position by themselves when the power supply is interrupted.

Principle of the slider:
Position 1 neutral (power supply is switched off) cylinder piston rod stops - oil goes to overflow.
Position 2 operation (power supply only to solenoid one) the cylinder piston rod is extended.
Mode 3 operation (power supply only to solenoid two) cylinder piston rod retracts.

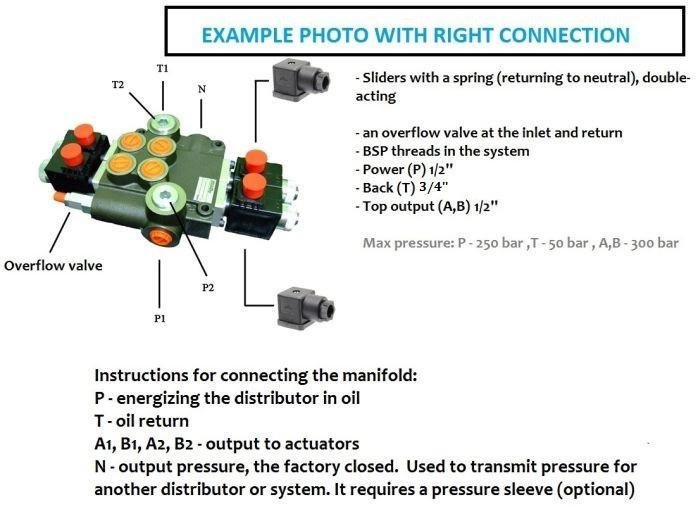

Internal threads in the housing:
Connection port supply: 1/2''
Connection port return: 3/4''
Connection port sections: 1/2''

Pressure range:
Maximum supply pressure: 250 bar
Maximum pressure on return: 50 bar
Maximum pressure on sections: 300 bar

The opening pressure of the bypass valve increases proportionally with increasing flow rate:
180 bar (2610.68 psi) at 20 l/min
190 bar (2755.72 psi) at 40 l/min
200 bar (2900.75 psi) at 60 l/min
210 bar (3045.79 psi) at 80 l/min

It is recommended to check and set the correct pressure before commissioning.
Self-adjusting, full rotation 30 bar (435,11 psi change).

Temperature range and oil type:
Permissible ambient temperature: -40°C to +60°C
Permissible oil temperature: -15°C to +80°C
Recommended hydraulic oil on mineral oil base, e.g. HL 32 or HL 46

Recommended oil filtration of 10 - 15 µ

Open central system (pump-to-tank flow)
Modification / Coils with 1 to 7
HIGH QUALITY Made in the EU

The hydraulic valve is widely used in hydraulic systems in construction, industry and agriculture.
The valve is adapted to different types of machines such as
sprayers, turners, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, agricultural machines, tractors, industrial machines and other hydraulically driven equipment.
Can be used with MF, CASE, Caterpillar, Komatsu, Volvo, JCB, Liebherr, Hyundai, Bobcat, Kawasaki, John Deere..... and many more.

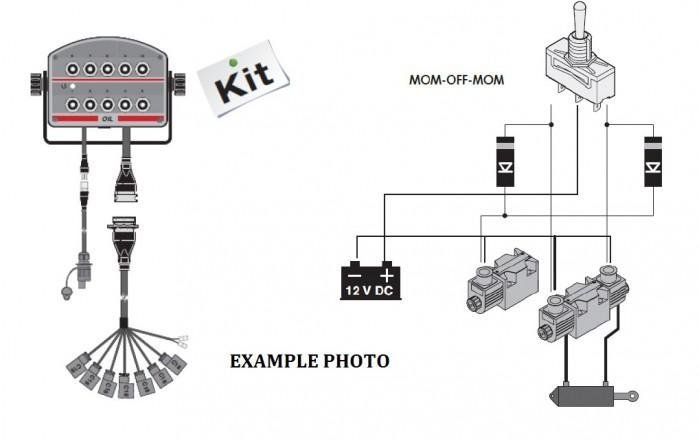

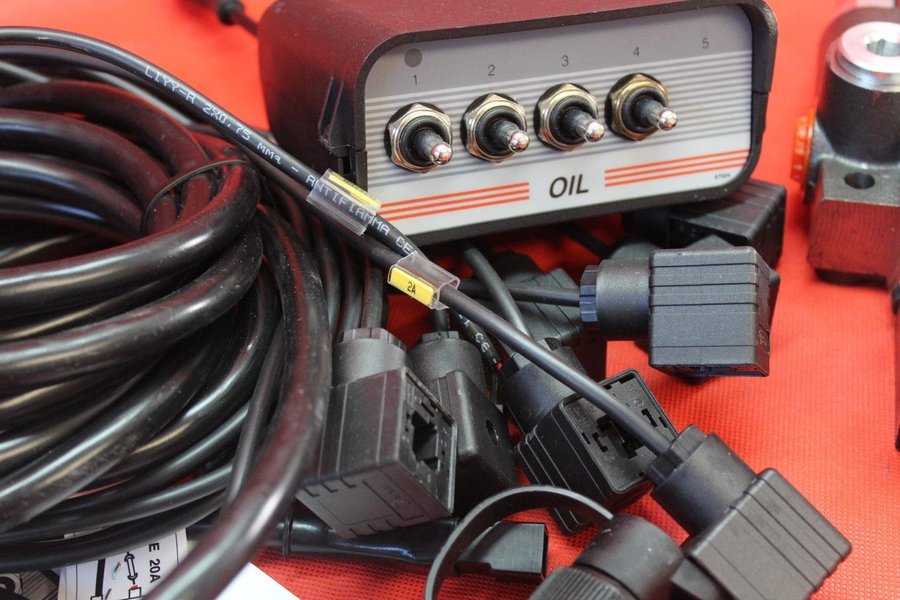

Control panel for the hydraulic valves.
All up-down switches with automatic centering (1-0-2) without latch.
Each panel is sold complete with a 2m power cable with plug and a set of 4m cables with plugs for the benefits. We also have extension cables of 3, 5 or 9 m.
When any of the switches is in the switched position, the signal is simultaneously sent to another pair of cables, which can be used to activate warning signals (horn, cockerel) or to turn on the pump via a relay.
All panels offered are equipped as standard with push buttons with spring-loaded positioning, which automatically return to the neutral position.
All plugs are included.
Power cable 2 meters and from panel to valve 3 meters.

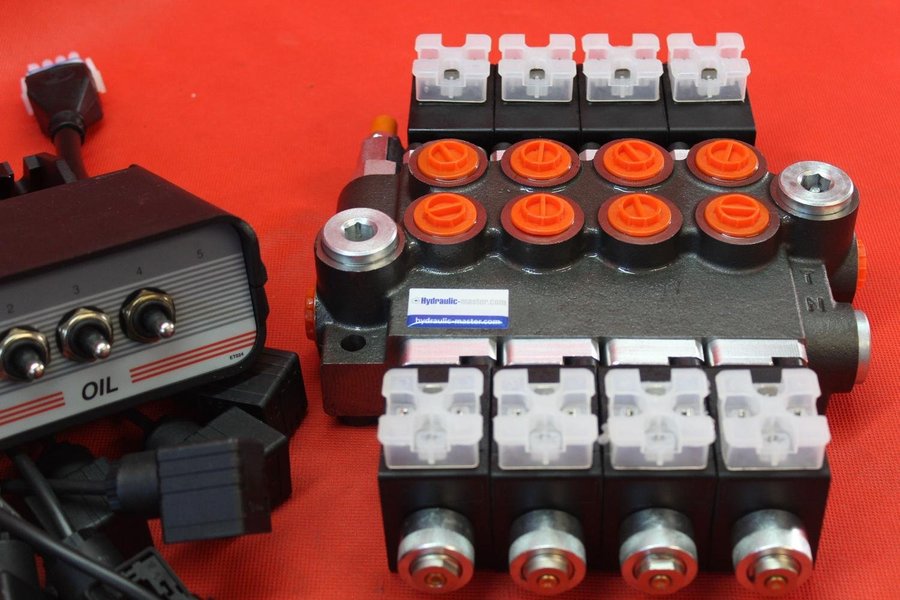

Control of e.g. such 5-section directional valves.
Can be used with MF, CASE, Caterpillar, Komatsu, Volvo, JCB, Liebherr, Hyundai, Bobcat, Kawasaki, John Deere..... and many more.

---------------
