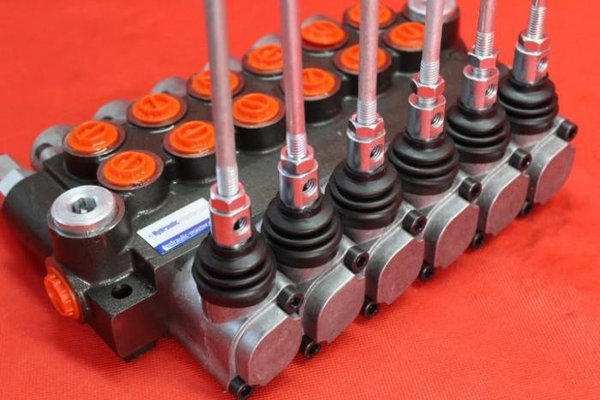

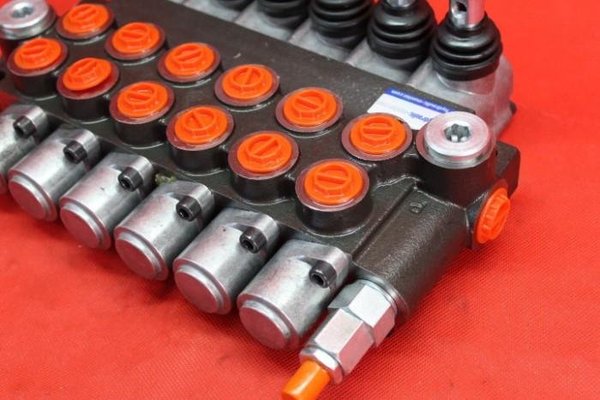

Hydraulic valves Valve monoblock 6 sections 80 l/min

All three-position valves are spring-loaded, i.e. they return to the neutral position by themselves when the power supply is interrupted.

Principle of the slider:
Mode 1 neutral (power supply off) cylinder piston rod stops - oil goes to overflow.
Mode 2 operating (power supply only to solenoid one) the cylinder piston rod is extended.
Mode 3 operation (power supply to solenoid two only) cylinder piston rod retracts.

Internal threads in the housing:
Connection port supply: 1/2''
Connection port return: 3/4''
Connection port sections: 1/2''

Pressure range:
Maximum supply pressure: 250 bar (3625.94 psi)
Maximum pressure on return: 50 bar (725,19 psi)
Maximum pressure on sections: 300 bar (4351,13 psi)

The opening pressure of the bypass valve increases proportionally with increasing flow rate:
180 bar (2610.68 psi) at 20 l/min
190 bar (2755.72 psi) at 40 l/min
200 bar (2900.75 psi) at 60 l/min
210 bar (3045.79 psi) at 80 l/min

It is recommended to check and set the correct pressure before commissioning.
Self-adjusting, full rotation 30 bar (435,11 psi change).

Temperature range and oil type:
Permissible ambient temperature: -40°C to +60°C
Permissible oil temperature: -15°C to +80°C
Recommended hydraulic oil on mineral oil base, e.g. HL 32 or HL 46
Recommended oil filtration of 10 - 15 µ

Open central system (pump-to-tank flow)
Modification / Coils with 1 to 7
HIGH QUALITY Made in the EU

The hydraulic valve is widely used in hydraulic systems in construction, industry and agriculture.
The valve is adapted to different types of machines such as
sprayers, turners, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, agricultural machines, tractors, industrial machines and other hydraulically driven equipment.
Can be used with MF, CASE, Caterpillar, Komatsu, Volvo, JCB, Liebherr, Hyundai, Bobcat, Kawasaki, John Deere..... and many more.

---------------
